Alvi Beckman Self-Retaining Retractor
Deep Meyerding Retractor with Ergonomic Handle
Double Bent Extended Deep Tissue Retractor
Durham Offset Zelpi Retractor
Alvi Beckman Self-Retaining Retractor
NEW! Deep Meyerding Retractor with Ergonomic Handle
Double Bent Extended Deep Tissue Retractor
Durham Offset Zelpi Retractor
Flat Gelpi Retractors
Gelpi Retractors
Hendren Self-Retaining Retractor
Incision Aligner
Large Exposure Self-Retaining Retractor
Flat Gelpi Retractors
Gelpi Retractors
Hendren Self-Retaining Retractors
Incision Aligner
Large Exposure Self-Retaining Retractor
Romanelli Deep Gelpi Retractor
Self-Retaining Tension Retractor
Stainless Steel Ratchet Frame with Arms and Blades Sets
StulbergIncisionCloseGelpiNew
Rogozinski Reverse Angle Retractor
Romanelli Deep Gelpi Retractor
Self-Retaining Tension Retractor
NEW! Stainless Steel Hip Surgery Ratchet Frame with Arms and Blades Sets
Stulberg Incision Close Gelpi & Blade Set
Whelan Large Anterior Hip Weitlaner Retractor



Tube and Extender Pins
NEW! Whelan Large Anterior Hip Weitlaner Retractor with Ergonomic Handle
Tube and Extender Pins




Alvi Beckman Self-Retaining Retractor

Designed for direct anterior approach hip arthroplasty, the wide, blunt and curved teeth help provide for better self-retaining retraction during dissection through the superficial and deep tissue planes to expose the hip joint


Designed by Hasham Alvi, MD


Alvi Beckman Self-Retaining Retractor


Product No: 1577
Overall Length: 13" (33 cm)
Length to Bend: 9.625" (24,4 cm)
Depth when Full Bent: 3.125" (7,9 cm)
Download Product Brochure (PDF)

TOP





Deep Meyerding Retractor with Ergonomic Handle

A self-retaining soft tissue retractor for use in hip, knee, and shoulder surgery

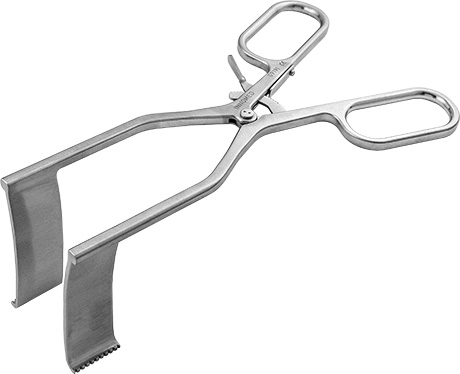

Deep Meyerding Retractor with Ergonomic Handle



Product No: 6244
Overall Length: 8.5" (21,6 cm)
Blade Depth: 3.5" (8,9 cm)
Blade Width: 1" (2,54 cm)
Download Product Brochure (PDF)

TOP





Double Bent Extended Deep Tissue Retractor

Designed to help maximize exposure with 90° arms and deep tissue blades





Bone Depth Gauge


Product No: 1859
Overall Length: 8" (20,3 cm)
Handle-to-Bend Length: 6" (15,2 cm)
Drop Depth: 3" (7,6 cm)
Prongs: 1.375" Deep x 1.375" Wide (3,5 cm x 3,5 cm)
Download Product Brochure (PDF)

TOP





Durham Offset Zelpi Retractor

Staggered depth retractor designed for exposure during total hip and total shoulder surgery


Designed by Alfred Durham, MD

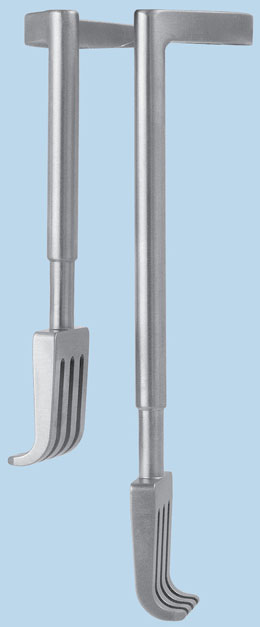

Durham Offset Zelpi Retractor



In hip surgery, with the handle towards the surgeon, the longer leg is on the inside.

In shoulder surgery, with the handle downward, the longer leg is on the ouside.

The longer leg extends 1.1" (2,8 cm) deeper.

Product No’s:

1573-L [Left]
Overall Length: 8.5" (21,6 cm)
Leg Depths: 3.1" & 4.2" (7,9 cm & 10,7 cm)


1573-R [Right]
Overall Length: 8.5" (21,6 cm)
Leg Depths: 3.1" & 4.2" (7,9 cm & 10,7 cm)
Download Product Brochure (PDF)

TOP





Flat Gelpi Retractors

Designed to help retract a broader area of soft tissue or muscle

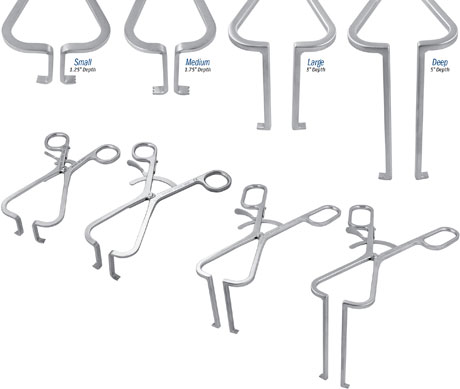

Flat Gelpi Retractors

The two largest sizes feature double ergonomic handles for increased comfort and control.


Product No’s:

4191 [Small]
Overall Length: 6.5" (16,5 cm)
Prong Depth: 1.25" (3,2 cm)


4192 [Medium]
Overall Length: 7.25" (18,4 cm)
Prong Depth: 1.75" (4,4 cm)


4193 [Large]
Overall Length: 9" (22,9 cm)
Prong Depth: 3" (7,6 cm)


4194 [Deep]
Overall Length: 10" (24,4 cm)
Prong Depth: 5" (12,7 cm)
Download Product Brochure (PDF)



TOP





Gelpi Retractors





Gelpi Retractors



Product No’s:

4180 [Standard]
Overall Length: 7.75" (19,7 cm)

4181 [With Ergonomic Handle]
Overall Length: 8.75" (22,2 cm)
Download Product Brochure (PDF)

TOP





Hendren Self-Retaining Retractor

Gentle on tissue, effectively holds back subcutaneous fat, and can be useful for retracting the deltoid muscle firmly


Designed by D.H. Hendren, MD


Hendren Self-Retaining Retractor

Designed to be gentle on tissue and very effective in holding back subcutaneous fat. Also useful for retracting the deltoid muscle firmly. Available in three sizes.

Hendren Retractor in Surgery

Product No’s.
1730 3.5" Length, 10 x 12mm Blade Size
1745 5.5" Length, 18 x 13mm Blade Size
1750 6.5" Length, 22 x 14mm Blade Size
Download Product Brochure (PDF)

TOP





Incision Aligner

Designed to align an incision during closing


Designed by DMP


Incision Aligner

The bent ends of the aligner are placed at each end of an incision, which is aligned by pulling outward on each end. The sliding end will lock in place when it is tensioned. Pressing inward slightly on the sliding end will allow the aligner to be collapsed and removed.

Incision Aligner in Surgery

Product No: 1330
Overall Length: 14"
Blade Offset: 45mm
Download Product Brochure (PDF)

TOP





Large Exposure Self-Retaining Retractor

Designed for effective exposure of large wounds


Designed by Vincent Ng, MD


Large Exposure Self-Retaining Retractor
Product No: 1581-01
Overall Length (flat): 15.75" (40 cm)
Leg Depth from Bend: 5.25" (13,3 cm)
Download Product Brochure (PDF)

TOP





Rogozinski Reverse Angle Retractors

Designed to be self-leveling, helping to maintain the body of the retractor on the patient for soft tissue retraction and out of the surgeons field, with finger loops designed for use with either hand


Designed by Chaim Rogozinski, MD


Rogozinski Reverse Angle Retractor

Designed for spine but can be used for other surgeries as well.

Product No's:

4272 [Large]
Overall Length: 9" (22,9 cm)
Length to Bend: 8.5" (21,6 cm)
Depth: 4.25" (10,8 cm)


4273 [Medium]
Overall Length: 8" (20,3 cm)
Length to Bend: 8" (20,3 cm)
Depth: 3" (7,6 cm)

4274 [Small]
Overall Length: 8" (20,3 cm)
Length to Bend: 8" (20,3 cm)
Depth: 1.75" (4,4 cm)
Download Product Brochure (PDF)

TOP





Romanelli Deep Gelpi Retractor

Offers the versatility and ability to be used on minimally invasive total hip replacements anteriorly or posteriorly, and can also be useful in spine surgery


Designed by Ron Romanelli, MD


Romanelli Deep Gelpi Retractor

Can be used to hold the hip capsule out of the way for easy visualization, and to allow reaming of the acetabulum without catching the capsule in the reamer.

The ends of the retractor have dull tips to help avoid soft tissue damage.

Wider separation occurs at the deep capsule level.

Holds the muscle out of the way while retracting the capsule.

Also helpful in MIS Spine approaches.

Product No: 4270
Overall Length: 7.45" (18,9 cm)
Depth from Bend: 5.125" (13 cm)
Prong Length: .5" (13 mm)
Download Product Brochure (PDF)

TOP





Self-Retaining Tension Retractor

The expandable design allows for a wide variety of blades to be used for exposure in total joint and trauma procedures







Self-Retaining Tension Retractor

Handle only — blades not included.

Self-Retaining Tension Retractor
Self-Retaining Tension Retractor
Self-Retaining Tension Retractor

Product No: 1586
Overall Length: 8.875" (22,5 cm)
Maximum Width at Pegs: 8" (20,3 cm)
Download Product Brochure (PDF)

TOP





Stainless Steel Hip Surgery Ratchet Frame with Arms and Blades Sets

Designed for self-retaining wound exposure, the arms and blades of the OrthLucent™ version are radiolucent and can be kept in place while using image intensification or taking an x-ray








Stainless Steel Ratchet Frame with Arms and Blades Sets

Arms rotate 180° and mobile arm units can be detached from the ratchet body for cleaning.



Set with OrthoLucent™ Arms and Blades

The OrthLucent arms and blades are made of a strong, lightweight carbon fiber PEEK composite material, which is radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

7428-00 [Set with OrthoLucent Arms & Blades]

Set Includes:

7428-01A [Mobile OrthoLucent Arm]

7428-01B [Stationary OrthoLucent Arm]

7427-02 [50 mm OrthoLucent Blade]
Dimensions: 50 mm Deep X 25 mm Wide


7427-03 [75 mm OrthoLucent Blade]
Dimensions: 75 mm Deep X 25 mm Wide



Optional Blade – Not Included In Set:

7427-04 [100 mm OrthoLucent Blade]
Dimensions: 100 mm Deep X 25 mm Wide

Other Options Available Are:

7428-01 [Stainless Steel Ratchet Frame
with OrthoLucent Arms Assembly]
Dimensions (Flat): 10" x 5.625" (25,4 cm x 14,3 cm)
Arms Extend: 4.25" (10,8 cm)






Set with Stainless Steel Arms and Blades

Product No's:

7429-00 [Set with Stainless Steel Arms & Blades]

Set Includes:

7429-01A [Mobile Stainless Steel Arm]

7429-01B [Stationary Stainless Steel Arm]

7429-02 [50 mm Stainless Steel Blade]
Dimensions: 50 mm Deep X 25 mm Wide


7429-03 [75 mm Stainless Steel Blade]
Dimensions: 75 mm Deep X 25 mm Wide

Optional Blade – Not Included In Set:

7429-04 [100 mm Stainless Steel Blade]
Dimensions: 100 mm Deep X 25 mm Wide

Other Options Available Are:

7429-01 [Stainless Steel Ratchet Frame
with Stainless Steel Arms Assembly]
Dimensions (Flat): 10" x 5.625" (25,4 cm x 14,3 cm)
Arms Extend: 4.25" (10,8 cm)
Download Product Brochure (PDF)

TOP





Stulberg Incision Close Gelpi & Blade Set

Designed to help expose difficult to visualize areas at the end of incisions


Designed by S. David Stulberg, MD

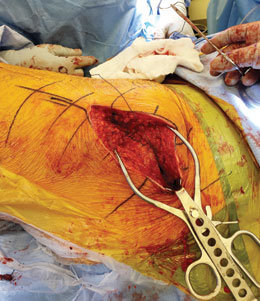

Stulberg Incision Close Gelpi & Blade Set

Stulberg Incision Close Gelpi & Blade Set

Product No's:

4269-00 [Set – 1 Gelpi & 1 Blade]

Set includes / Available Individually:

4269-01 [Gelpi]
Overall Length: 7.25" (18,4 cm)
Maximum Spread Width: 3.5" (8,9 cm)

4269-02 [Blade]
Overall Length: 5.5" (14 cm)
Blade Width: 1" (2,54 cm)
Blade Bend-Back Angle: 130°

Download Product Brochure (PDF)

TOP





Tube and Extender Pins

Designed to help achieve wide exposure of the acetabulum
during total hip arthroplasty





Tube and Extender Pin

Tube and Extender Pins

Tube and Extender Pins

Tube pins with depth stops are inserted under direct visualization into the thick bone of the posterior column and illiac wing. Extender pins placed in the tube pins help keep the soft tissues from obstructing the view of the acetabulum. The low profile of the tube pins helps keep them out of the way of the surgeon. The extender pin can be removed or left in the tube pin depending on the size of the patient.

Product No's:

1230 [70mm Tube Pin] Package of 10
Pin Diameter at End: 1/8" (3.2mm)
Overall Length: 70mm
Length to Stop: 20mm

1250 [100mm Extender Pin] Package of 10
Pin Diameter: 1/8" (3.2mm)
Overall Length: 100mm
Download Product Brochure (PDF)

TOP





Whelan Large Anterior Hip Weitlaner Retractor with Ergonomic Handle

Designed for self-retaining exposure during anterior approach THA


Designed by Edward J. Whelan III, MD




Whelan Large Anterior Hip Weitlaner Retractor




Product No's:

1576-B [Blunt]
Overall Length: 9" (22,9 cm)
Blade Depth: 1" (2,54 cm)


1576-S [Sharp]
Overall Length: 9" (22,9 cm)
Blade Depth: 1" (2,54 cm)


Download Product Brochure (PDF)

TOP
