Innomed, Inc. Orthopedic Instruments

HIP INSTRUMENTS • miscellaneus retractors

Click thumbnail image for details

Acetabular Retractors – Single Prong
Acetabular Retractors – Double Prong
Amstutz Acetabular Exposure Pin System
APC Hip Retractor Series
Acetabular Retractors – Single Prong
Acetabular Retractors – Double Prong
Amstutz Acetabular Exposure Pin System
APC Hip Retractor Series
Blount Retractor with Small Handle
Acetabular Retractors with Large Handle
Duke Classic Acetabular Retractor with Extra Grip Tip
Duke Inferior Retractors with Extra Grip Tip
Hand/Waist Rest Adapter
Blount Retractor with Small Handle
Deep Hohmann-style Retractors with Large Handle
Duke Classic Acetabular Retractor with Extra Grip Tip
Duke Classic Inferior Retractors with Extra Grip Tip
Hand/Waist Rest Adapter
Hibbs Retractors
Hip Retractor with Waist Pad
Amstutz Femoral Retractor
Lombardi Femoral/Gluteus Medius Minimus Retractor
McMaster Abductor Retractor
Hibbs Retractors
Hip Retractor with Waist Pad
Inferior Acetabular Retractors
Lombardi Femoral/Gluteus Medius Minimus Retractor

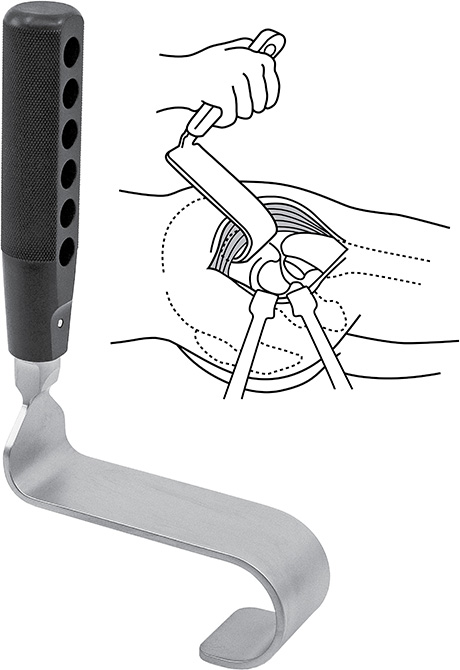

McMaster Abductor Retractor
McPherson Retractor Extender
Medial Acetabular Retractors with Large Handle
Meyerding Type Retractors with Ergonomic Handle

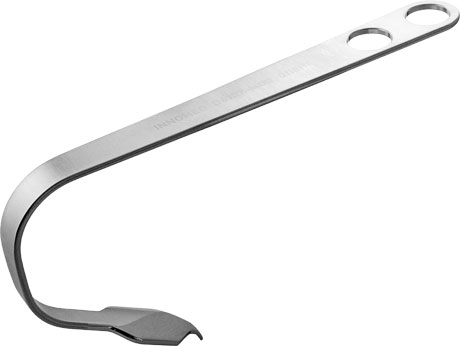

Modified Curved Double Bent Hohmann Retractor

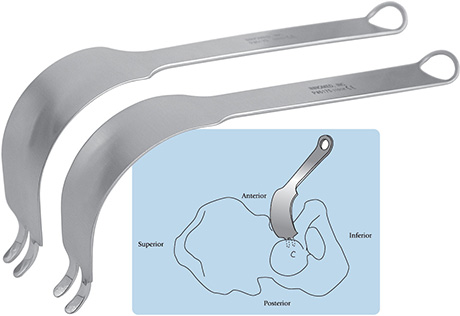

Modified Double Prong Acetabular Retractors
McPherson Retractor Extender

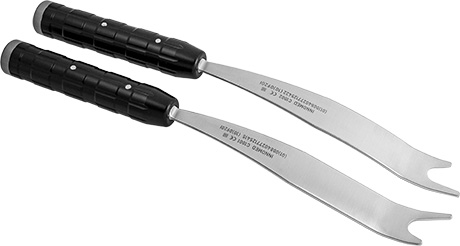

Medial Acetabular Retractors with Large Handle
Meyerding Type Retractors with Ergonomic Handle

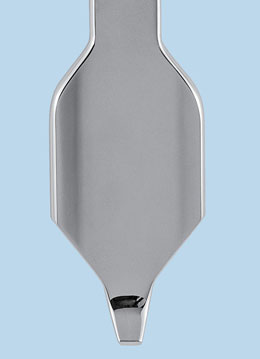

Modified Curved Double Bent Hohmann Retractor
Modified Double Prong Acetabular Retractors
Moran Posterior-Inferior Retractor
Narrow Cobra-style Retractor with Large Handle
Narrow Right Angle Retractor
Offset Medial Acetabular Retractors with Large Handle
O'Reilly Direct Access Anterior Broaching Retractor

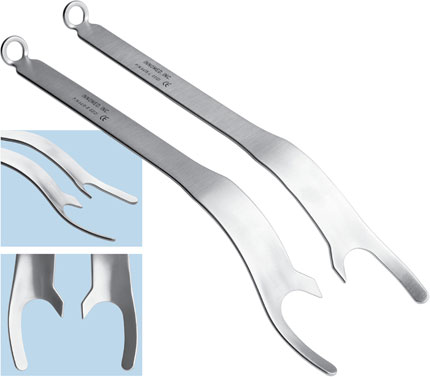

Moran Posterior-Inferior Retractor
Narrow Cobra-style Retractor with Large Handle

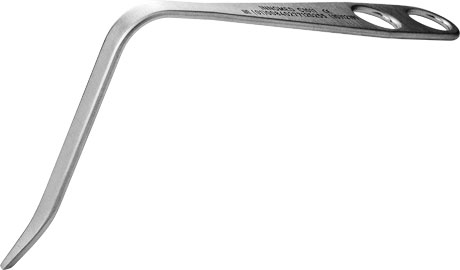

Narrow Right Angle Retractor

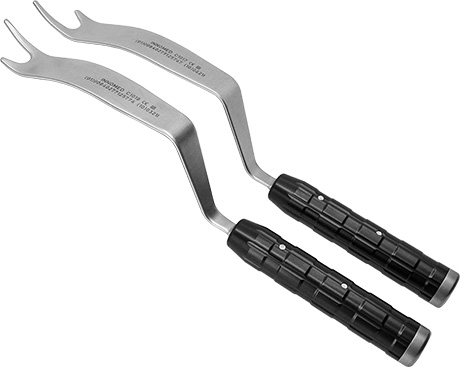

Offset Medial Acetabular Retractors with Large Handle
O'Reilly Direct Access Anterior Broaching Retractor
O’Reilly Dual Handle Direct Anterior Retractor
OrthoLucent™ Richardson-type Soft Tissue Retractor
Penenberg Gluteus Retractors

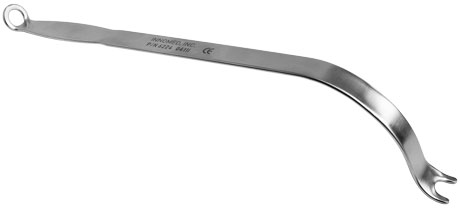

Posterior Acetabular Retractor

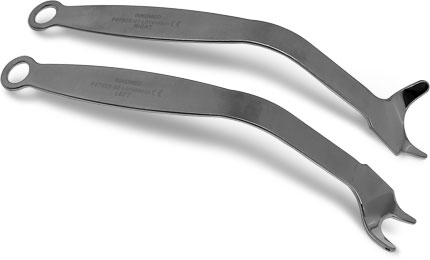

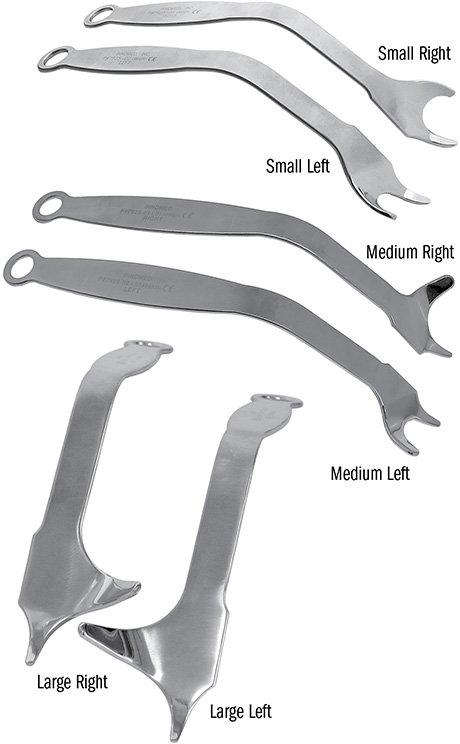

Posterior-Inferior Retractors
O’Reilly Dual Handle Direct Anterior Retractor

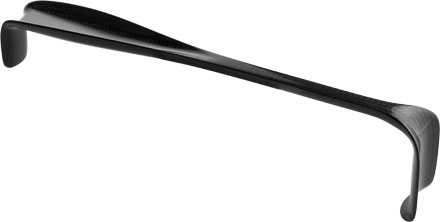

OrthoLucent™ Richardson-type Soft Tissue Retractors
Penenberg Gluteus Retractors
Posterior Acetabular Retractor
Posterior-Inferior Retractors

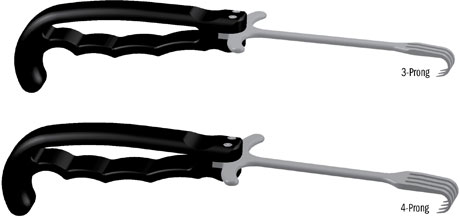

Rake Retractors with Ergonomic Handle
Rib Periosteal Rasp

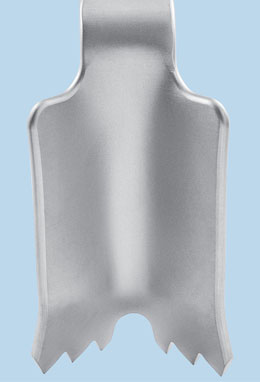

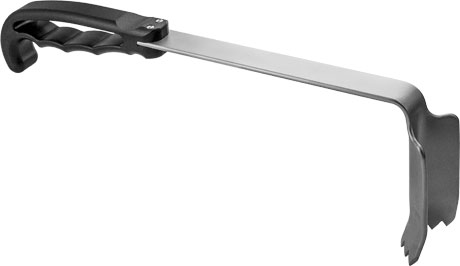

Rosen “V” Deep Soft Tissue Retractor
Short Tip Acetabular Retractor

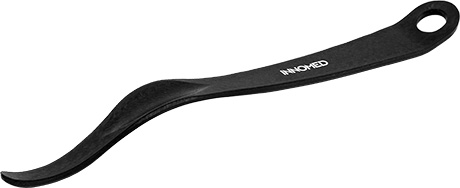

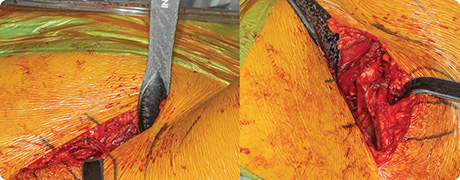

Sierra OrthoLucent™ Pelvic Osteotomy Retractor
Rake Retractors with Ergonomic Handle

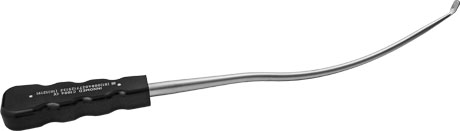

Rib Periosteal Rasp
Rosen “V” Deep Soft Tissue Retractor

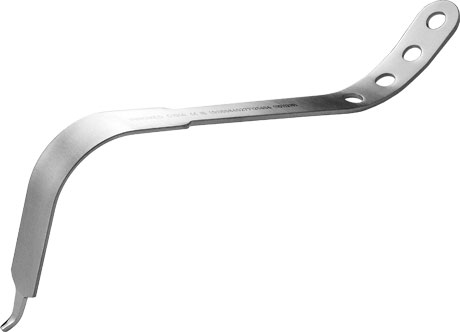

Short Tip Acetabular Retractor
NEW! Sierra OrthoLucent™ Pelvic Osteotomy Retractor
Sierra OrthoLucent™ Soft Tissue Retractor
Sinha Retractor for Acetabular Reaming
Stowell Modified Posteror Acetabular Retractor

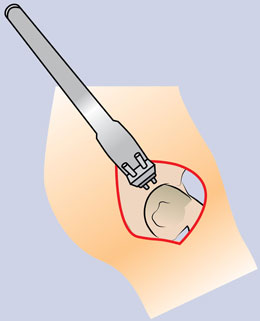

Superior Retractor
Taylor Retractors
NEW! Sierra OrthoLucent™ Soft Tissue Retractor
Sinha Retractor for
Acetabular Reaming
Stowell Modified Posterior Acetabular Retractor

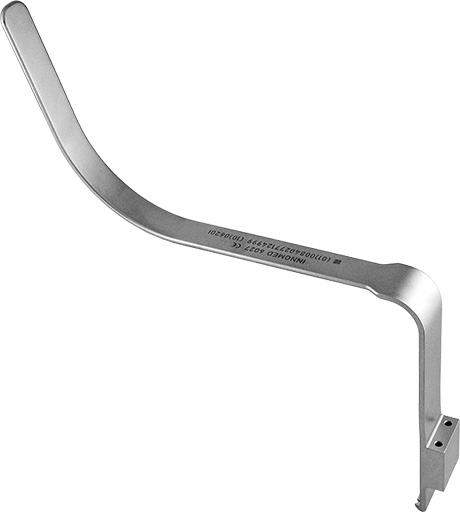

Superior Retractor
Taylor Retractors
Wide Rake Retractors with Ergonomic Handle
Zelicof Winged Retractor
Wide Rake Retractors with Ergonomic Handle
Zelicof Winged Retractor

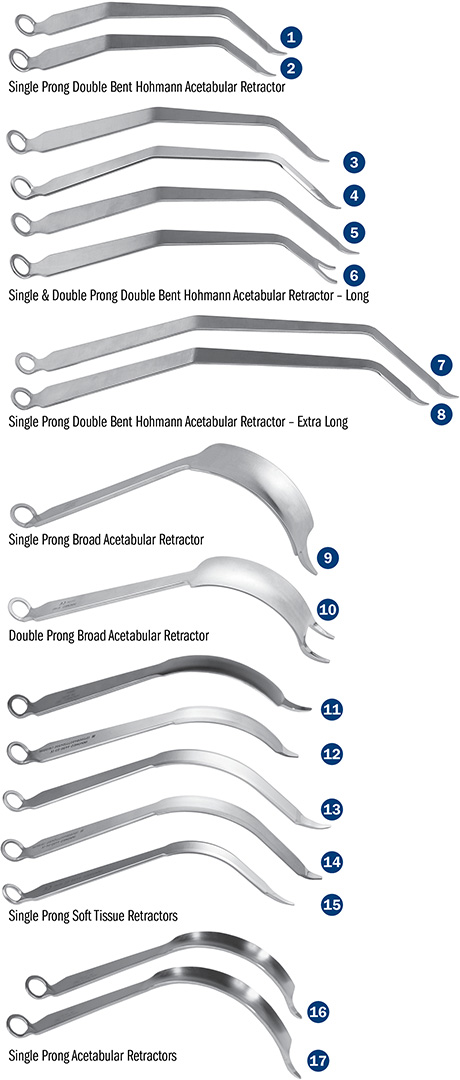

Acetabular Retractors — Single & Double Prong

For general use in hip surgery and minimally invasive hip surgery





Acetabular Retractors — Single & Double Prong


Retractor handles are designed for optional use with modular weights to help hold the retractors in place.

Lighted retractor can be attached to a fiber optic light cable with ACMI (female) connector.

Product No’s:

Single Prong Double Bent
Hohmann Acetabular Retractor

6212 [Longer Blade]
Overall Length: 11.25" (28,6 cm)
Blade + Tip Length: 3.5" (89 mm)
Blade Width: 15 mm
6210 [Standard Blade]
Overall Length: 10.5" (26,7 cm)
Blade + Tip Length: 2.5" (64 mm)
Blade Width: 15 mm



Single & Double Prong Double Bent
Hohmann Acetabular Retractor – Long
6210-02 [Single Prong – Standard Blade]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm
6210-02L [Lighted Single Prong – Standard Blade]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm


Light Source
Cable Adapters


Product No's:
8009-S ACMI to Storz Adapter
8009-W ACMI to Wolf Adapter

6211 [Single Prong – Std Blade with Extra Grip Tip]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm


6213 [Single Prong – Longer Blade]
Overall Length:15" (38,1 cm)
Blade + Tip Length: 5" (127 mm)
Blade Width: 15 mm
6220 [Double Prong – Standard Blade]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm

Single Prong Double Bent
Hohmann Acetabular Retractor – Extra Long

6214 [Longer Blade]
Overall Length: 18" (45,7 cm)
Blade + Tip Length: 5" (127 mm)
Blade Width: 15 mm
6210-04 [Standard Blade]
Overall Length: 16.25" (41,3 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm

Single Prong Broad Acetabular Retractor
6320
Overall Length: 12" (30,5 cm)
Blade Width: 40 mm

Double Prong Broad Acetabular Retractor
6160
Overall Length: 12.5" (31,8 cm)
Blade Width: 40 mm

Single Prong Soft Tissue Retractors
6450 [Standard]
Overall Length: 12.125" (30,8 cm)
Blade Width: 22.3 mm

6450-03 [Standard with Short Tip]
Overall Length: 11.75" (29,8 cm)
Blade Width: 22.3 mm

6450-01 [Extra Deep]
Overall Length: 13.75” (34,9 cm)
Blade Width: 22.3 mm

6450-04 [Extra Deep w/Short Tip]
Overall Length: 13" (33 cm)
Blade Width: 22.3 mm

6450-02 [Straight Tip]
Overall Length: 12.125" (30,8 cm)
Blade Width: 22.3 mm


Single Prong Acetabular Retractors
6570 [Standard]
Overall Length: 12.125" (30,8 cm)
Blade Width: 22.3 mm

6570-01 [Extra Deep]
Overall Length: 13.75” (34,9cm)
Blade Width: 22.3mm

Download Product Brochure (PDF)

TOP

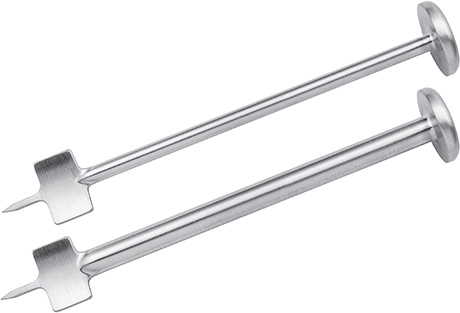

Amstutz Acetabular Exposure Pin System

Used to enhance exposure in the acetabulum


Designed by Harlan C. Amstutz, MD



Amstutz Acetabular Exposure Pin System
Product No’s:

1200-00 [Set of Inserter/Extractor and Two Pins]

1200-0A [Set of Inserter/Extractor and Two Pins w/Stop]

Also sold Individually:

1200-01 [Inserter/Extractor]

1200-02 [Pin]
Overall Length: 4.5" (11,4 cm)
Pin Depth: 2" (5,1 cm)
Pin Diam.: 3.9 mm

1200-03 [Pin w/Stop]
Overall Length: 4.5" (11,4 cm)
Pin Tip-to-Stop Depth: .75" (1,9 cm)
Pin Diameter: 3.2 mm

1200-04 [Deep Pin]
Overall Length: 7" (17,8 cm)
Pin Depth: 4.5" (11,4 cm)
Pin Diameter: 3.9 mm

Amstutz Charnley-type Acetabular Exposure Pin Set
Download Product Brochure (PDF)

TOP





APC Hip Retractor Series

Used to help provide wide exposure of the acetabulum


Designed by APC, Inc.




APC Hip Retractor Series

The single prong retractor is designed to be placed around the inferior-posterior edge of the acetabulum for wide exposure during total hip replacement. Modular weights can be used to help hold the retractor in place.

The double prong retractor is designed to retract the femur anteriorly during total hip arthroplasty. It is hooked over the anterior pelvic brim.

APC Hip Retractor Series

Product No’s:

6420 [Single Prong]
Overall Length: 14" (35,6 cm)
Handle-to-1st-Bend Length: 5.25" (13,3 cm)
Handle-to-2nd-Bend Length: 6.5" (16,5 cm)
Blade Width: 22 mm

6430 [Double Prong]
Overall Length: 14" (35,6 cm)
Handle-to-1st-Bend Length: 5.25" (13,3 cm)
Handle-to-2nd-Bend Length: 6.5" (16,5 cm)
Blade Width: 24 mm
Prong Width: 6.8 mm | 10 mm Gap | 6.8 mm

Download Product Brochure (PDF)

TOP





Blount Retractor with Small Handle

A blount retractor with a lightweight ergonomic handle designed for tissue retraction and closure assistance in knee, shoulder, and hip arthroplasty


Designed by Ronald Romanelli, MD



Blount Retractor with Small Handle

Blount Retractor with Small Handle

Product No:4852
Overall Length: 9.375" (25,1 cm)
Handle Length: 4.625" (11,7 cm)
Blade Depth: 1.5" (3,8 cm)
Blade Width at Widest: .325" (8,3 mm)
Download Product Brochure (PDF)

TOP





Deep Hohmann-style Retractors with Large Handle





Acetabular Retractors with Large Handle

Product No's:

C1009 [Standard]
Overall Length: 15.75" (40 cm)
Handle Length: 6.125" (15,6 cm)
Blade Depth: 4.5" (11,4 cm)
Blade Width: 1.1" (28 mm)


C1010 [90°]
Overall Length: 14.25" (36,2 cm)
Handle Length: 6.125" (15,6 cm)
Blade Depth: 5.25" (13,3 cm)
Blade Width: 1.1" (28 mm)


Download Product Brochure (PDF)


TOP

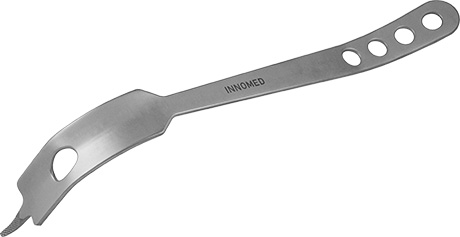

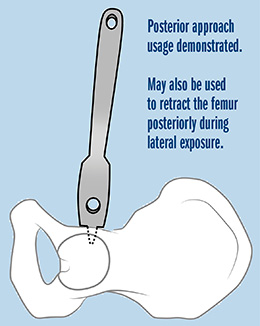

Duke Classic Acetabular Retractor with Extra Grip Tip

Designed to retract the femur during acetabular exposure for either posterior or lateral approaches


Designed by Justin Duke, MD


Duke Classic Acetabular Retractor with Extra Grip TipDuke Classic Acetabular Retractor


Product No: 7622
Overall Length: 13.5" (32,3 cm)
Handle Length: 9" (22,9 cm)
Depth from Bend: 4" (10,2 cm)
Prong Depth: 1.25" (3,2 cm)

Download Product Brochure (PDF)


TOP





Duke Classic Inferior Retractors with Extra Grip Tip

An inferior acetabular retractor designed for total hip arthroplasty while prepping the acetabulum


Designed by Justin Duke, MD


Duke Inferior Retractors with Extra Grip Tip
Duke Inferior Retractors with Extra Grip Tip

Product No’s:

7621-01 [Left]
Overall Length: 10.25" (26 cm)
Handle Length: 5" (12,7 cm)
Depth: 7.5" (19,1 cm)
Blade Length: 2.75" (7 cm)
Blade Width: 1.125" (2,9 cm)
Prong Length: 1" (2,5 cm)
Prong Width: 6 mm


7621-02 [Right]
Overall Length: 10.25" (26 cm)
Handle Length: 5" (12,7 cm)
Depth: 7.5" (19,1 cm)
Blade Length: 2.75" (7 cm)
Blade Width: 1.125" (2,9 cm)
Prong Length: 1" (2,5 cm)
Prong Width: 6 mm

Download Product Brochure (PDF)


TOP

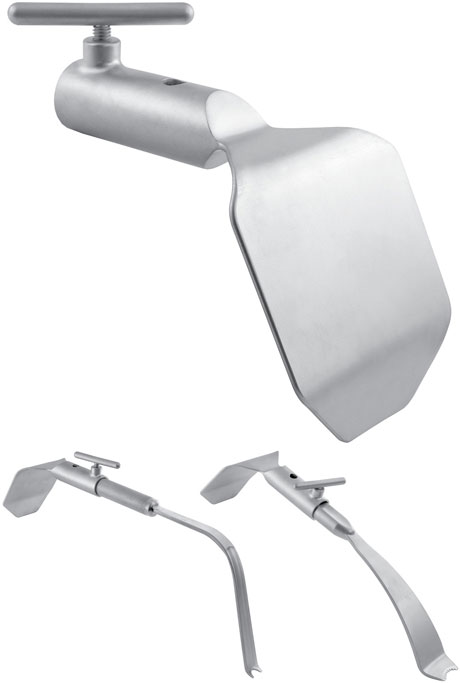

Hand/Waist Rest Adapter

Designed to allow for hands-free use of a femoral elevator during posterior approach hip arthroplasty


Designed by Matthew Clayton, MD


Hand/Waist Rest Adapter

Hand/Waist Rest Adapter
Hand/Waist Rest Adapter

Locking screw tightens onto the handle of many retractors/elevators to add a large surface for holding either by hand or by pressing into the waist

Product No: 8206
Overall Length: 8" (20,3 cm)
Handle Insert Depth: 2.5" (6,4 cm)
Handle Insert Internal Diameter: 1" (2,5 cm)
Rest Pad Dimensions: 4" x 4" (10,2 x 10,2 cm}
Download Product Brochure (PDF)

TOP

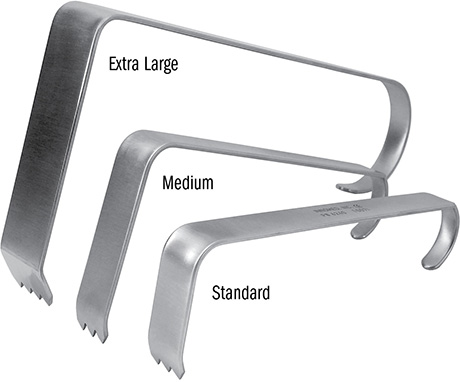

Hibbs Retractors

Designed for soft tissue retraction by either the toothed end or curved handle end




Hibbs Retractors

The standard and medium sizes are useful in anterior approach THA to retract the Tensor Fascia Lata and Rectus Femoris during the initial approach to the anterior hip capsule. Helps expose the Lateral Circumflex vessels.

The extra larg size can be used in large patients when more leverage and depth is needed.

Product No’s:

6230 [Extra Large]
Overall Length: 14.25" (36,2 cm)
Handle Length: 13" (33 cm)
Blade Depth: 6.5" (165 mm)
Blade Width: 38 mm

6235 [Medium]
10.75" (27,3 cm)
Handle Length: 9.75" (24,8 cm)
Blade Depth: 4.5" (114 mm)
Blade Width: 25 mm

6240 [Standard]
Overall Length: 8.75" (22,5 cm)
Handle Length: 8" (20,3 cm)
Blade Depth: 3" (76 mm)
Blade Width: 25 mm
Download Product Brochure (PDF)

TOP

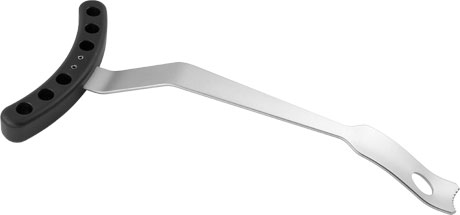

Hip Retractor with Waist Pad

Designed for use during the posterior approach hip arthroplasty, helping to eliminate the use of another hand by resting the waist pad against the body


Elevator designed by Luis Ulloa;
Waist pad designed by Christopher Blair, DO


Femoral Neck Elevator, Narrow with Waist Pad



Femoral Neck Elevator, Narrow with Waist Pad

The waist pad is designed to be wedged into the surgeons waistline to help control the retractor during use.

Product No: 7557
Overall Length: 14.25" (36,2 cm)
Blade Width: 34 mm
Blade Length: 4" (10,2 cm)
Blade Hole: 23,6 mm x 15,4 mm
Download Product Brochure (PDF)

TOP

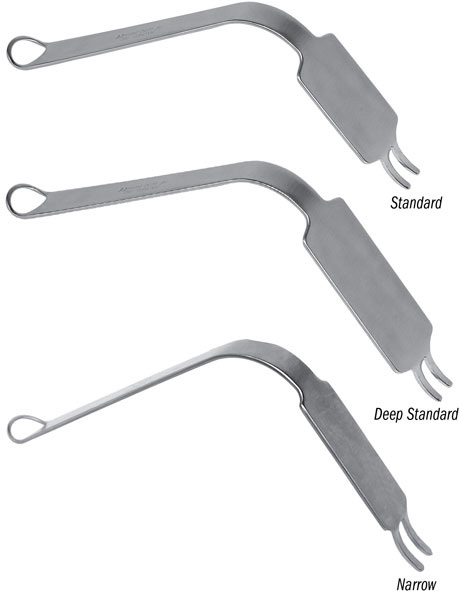

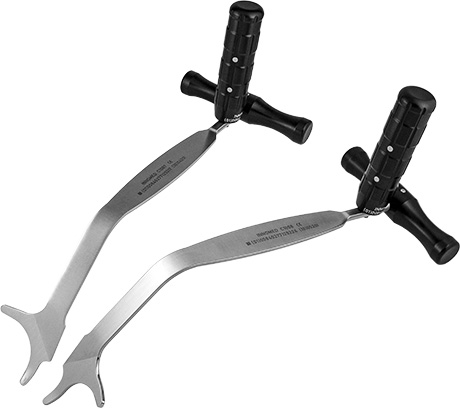

Inferior Acetabular Retractors




Inferior Acetabular Retractors
Product No’s:

6250 [Standard]
Overall Length: 12" (30,5 cm)
Handle Length: 8" (20,3 cm)
Blade Height Above Prongs: 3" (7,6 cm)
Blade Width: 51 mm
Prong Width: 5,1 mm | 9,7 mm Gap | 5,1 mm

6250-02 [Deep Standard]
Overall Length: 12.5" (31,8 cm)
Handle Length: 8" (20,3 cm)
Blade Height Above Prongs: 4" (10,2 cm)
Blade Width: 51 mm
Prong Width: 5,1 mm | 9,7 mm Gap | 5,1 mm

6255 [Narrow]
Overall Length: 12" (30,5 cm)
Handle Length: 8" (20,3 cm)
Blade Height Above Prongs: 3.25" (8,3 cm)
Blade Width: 32 mm
Prong Width: 5,1 mm | 9,7 mm Gap | 5,1 mm
Download Product Brochure (PDF)

TOP





Lombardi Femoral/Gluteus Medius Minimus Retractor

Designed for acetabular exposure, and to retract the gluteus medius minimus during femoral reaming


Designed by Adolph V. Lombardi, Jr., MD


Lombardi Femoral/Gluteus Medius Minimus Retractor

For acetabular exposure, the retractor can be placed easily at the level of the ischium and driven into the ischium to retract the femur posteriorly when using an anterolateral approach to the hip. Also using an anterolateral approach or a modified Harding hip approach, the retractor can be placed in the tip of the greater trochanter and can effectively retract the abductor mechanism, namely the gluteus medius minimus so that reaming of the femur can be performed.

Product No: 4235
Overall Length: 11.75" (29,8 cm)
Blade Width: 20 mm
Download Product Brochure (PDF)

TOP





McMaster Abductor Retractor

Designed to help with proximal femur exposure helping to protect the abductors – gluteus medius and minimus – during posterior approach THA


Designed by William D. McMaster, MD


McMaster Abductor Retractor

McMaster Abductor Retractor

McMaster Abductor Retractor

The ergonomic design allows application where soft tissue retraction is needed.


Product No: 6385
Overall Length: 8.75" (22,2 cm)
Handle Length: 4.625" (11,7 cm)
Blade Depth: 4.125" (10,8 cm)
Blade Width: 1.5" (3,8 cm)
Blade Curve Diameter: 1.75" (4,4 cm)

Download Product Brochure (PDF)

TOP





McPherson Retractor Extender

Designed to extend a standard retractor


Designed by Ed McPherson, MD



McPherson Retractor Extender

McPherson Retractor Extender

Available in two sizes to accommodate most retractors — standard for retractors up to .125" (3,2 mm) thick, and large for retractors up to .16" (4 mm) thick.

McPherson Retractor Extender
McPherson Retractor Extender

Product No's:

6022 [Standard]
Overall Length: 15.625" (39,7 cm)
For retractors up to .125” (3,2 mm) thick


6022-01 [Large]
Overall Length: 15.625" (39,7 cm)
For retractors up to .16” (4 mm) thick
Download Product Brochure (PDF)

TOP





Medial Acetabular Retractors with Large Handle

Designed for acetabular exposure during total hip surgery





Medial Retractors



Product No's:

C1001 [Left]
Overall Length: 15" (38,1 cm)
Handle Length: 6
" (15,2 cm)
Blade Width: 32 mm


C1002 [Right]
Overall Length: 15" (38,1 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 32 mm
Download Product Brochure (PDF)

TOP





Meyerding Type Retractors with Ergonomic Handle

Designed for general use soft tissue retraction, the ergonomic handle allows for a better grip and less fatigue







Meyerding Type Retractors with Ergonomic Handle


Meyerding Type Retractors with Ergonomic Handle


Non-glare finish featured on the metal retractor parts.


Product No’s:

6241 [50 x 16 mm]
Overall Length: 8.875" (22,5 cm)
Blade Width: 16 mm
Blade Depth: 50 mm


6242 [75 x 15 mm]
Overall Length: 9" (22,9 cm)
Blade Width: 15 mm
Blade Depth: 75 mm


6243 [75 x 25 mm]
Overall Length: 9" (22,9 cm)
Blade Width: 25 mm
Blade Depth: 75 mm

Download Product Brochure (PDF)

TOP





Moran Posterior-Inferior Retractor

Designed to achieve a stable position on the pelvis and expose the posterior-inferior aspect of the acetabulum


Designed by Michael C. Moran, MD


Moran Posterior-Inferior Retractor

Moran Posterior-Inferior Retractor

Moran Posterior-Inferior Retractor

Moran Posterior-Inferior Retractor

The short sharp tip is placed into the ischial sulcus behind the posterior acetabular rim. The long dull tip comes to rest behind the teardrop, while the retractor handle projects in a posterior-inferior direction.



Product No's:

6415-L [Left]
Overall Length: 12.5" (31,8 cm)

6415-R [Right]
Overall Length: 12.5" (31,8 cm)
Download Product Brochure (PDF)

TOP





Modified Curved Double Bent Hohmann Retractor

Designed to be placed on the anterior wall of the acetabulum, the double-bent angle allows for safe retraction of the reflected head of the rectus femoris, reducing concerns of over-retraction


Designed by Lawrence Dorr, MD
Design modification by Bertrand P Kaper, MD



Modified Curved Double Bent Hohmann Retractor



Product No: D6107-MOD
Overall Length: 8.5" (21,6 cm)
Depth from Handle: 4.5" (11,4 cm)
Blade Width: 27.4 mm
Download Product Brochure (PDF)

TOP





Modified Double Prong Acetabular Retractors with Center Prongs

Retracts the femur anteriorly during total hip arthroplasty




Modified Double Prong Acetabular Retractors with Center Prongs

Designed to retract the femur anteriorly during total hip arthroplasty. It is hooked over the anterior pelvic brim. Weights can be added to assist in exposure and to help hold the retractor in place.

Modified Double Prong Acetabular Retractors with Center Prongs

Product No’s:

6170 [Standard]
Blade Width: 44 mm
Overall Length: 12.5" (31,8 cm)
Handle Length: 8.5" (21,6 cm)

6175 [Narrow]
Blade Width: 32 mm
Overall Length: 12.5" (31,8 cm)
Handle Length: 8.5" (21,6 cm)
Download Product Brochure (PDF)

TOP





Narrow Cobra-style Retractor with Large Handle

Narrow cobra-type retractor with a large handle for use around the femur and acetabulum





Meyerding Spreader



Product No: C1005
Overall Length: 17.5" (34,5 cm)
Depth from handle: 7" (17,8 cm)
Download Product Brochure (PDF)

TOP





Narrow Right Angle Retractor

Designed for soft tissue retraction





Narrow Right Angle Retractor

Product No: C1011
Overall Length: 8.5" (21,6 cm)
Handle Length: 6.75" (17,1 cm)
Blade Depth: 4.5" (11,4 cm)
Blade Width: .375" (1 cm)


Download Product Brochure (PDF)


TOP





Offset Medial Acetabular Retractors with Large Handle

Designed for acetabular exposure during total hip surgery





Offset Medial Acetabular Retractors



Product No's:

C1017 [Left]
Overall Length: 15.5" (39,4 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 32 mm


C1018 [Right]
Overall Length: 15.5" (39,4 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 32 mm
Download Product Brochure (PDF)

TOP





O'Reilly Direct Access Anterior Broaching Retractor

Designed for use in obtaining improved proximal exposure for femoral canal preparation during minimally invasive direct anterior THA


Designed by Michael P. O'Reilly, MD


O'Reilly Direct Access Anterior Broaching Retractor
  • Lateral flange protects the muscle of tensor fascia lata and soft tissues during insertion and removal of femoral broaching instruments

  • Narrow tip for deep placement posterior to the femoral neck, anterior to the greater trochanter

  • Rotation of the retractor handle helps keep the instrument against the patient and out of the surgeon's line of sight

  • May also be used as an alternate to a trochanteric retractor during femoral broaching with a standard posterior approach



Product No's:

4698-L [Left]
Overall Length: 9.5" (24,1 cm)
Blade Width: 57 mm


4698-R [Right]
Overall Length: 9.5" (24,1 cm)
Blade Width: 57 mm

Download Product Brochure (PDF)

TOP





O’Reilly Dual Handle Direct Anterior Retractor

Designed for use over the anterior pelvic rim during acetabular exposure in direct anterior THA, the dual handle design allows for use in both right and left hips, as well as easy exchange of the instrument between assistants


Designed by Michael P. O’Reilly, MD


O’Reilly Dual Handle Direct Anterior RetractorO’Reilly Dual Handle Direct Anterior Retractor

O’Reilly Dual Handle Direct Anterior Retractor



Can be used in MIS/Direct Anterior, Total Hip Arthroplasty, Posterior/Anterolateral THA, and Hemiarthroplasty.


Product No: 3011
Overall Length: 13.25" (33,7 cm)
Blade Depth: 4.25" (10,8 cm)
Blade Width: 1" (2,5 cm)
Download Product Brochure (PDF)

TOP

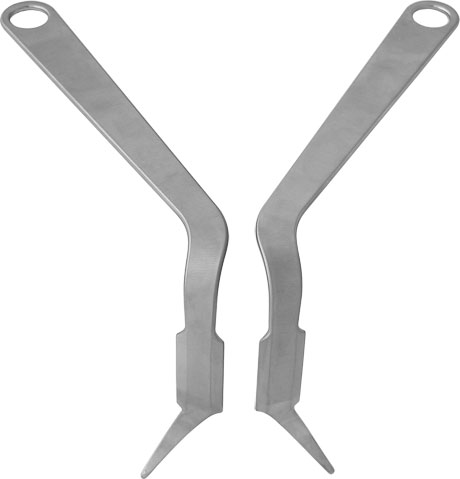

Penenberg Gluteus Retractors


Designed by Brad Penenberg, MD


Penenberg Gluteus Retractors
Penenberg Gluteus Retractors

Product No’s:

7108-01 [Right]
Overall Length: 8.25" (21 cm)
Handle to Bend Length: 6.5" (16,5 cm)
Depth from Bend: 4.25" (10,8 cm)

7108-02 [Left]
Overall Length: 8.25" (21 cm)
Handle to Bend Length: 6.5" (16,5 cm)
Depth from Bend: 4.25" (10,8 cm)
Download Product Brochure (PDF)

TOP





Posterior Acetabular Retractor

Designed for posterior acetabular retraction during anterior approach total hip replacement surgery


Designed by Amal Das, MD and Brian Seng, DO




Product No: 6224

Blade Width: 25 mm
Blade Depth: 2.75" (7 cm)
Overall Length: 14" (35,6 cm)
Download Product Brochure (PDF)

TOP

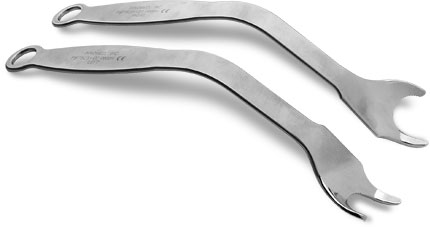

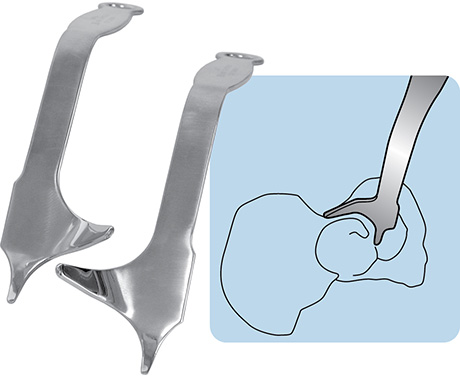

Posterior-Inferior Retractors

For increased leverage and depth with large patients


Designed by Wayne Goldstein, MD


Posterior-Inferior Retractors

The posterior-inferior retractor is placed with the point at 6 o’ clock and the retractor’s axilla resting on the ischium. The remaining blade of this retractor is used to retract the remaining capsule from the posterior lip of the acetabulum.

Product No’s:

7625-01 [Small Right]
Overall Length: 10.75" (27,3 cm)
Handle-to-Bend Length: 5.5" (14 cm)


7625-02 [Small Left]
Overall Length: 10.75" (27,3 cm)
Handle-to-Bend Length: 5.5" (14 cm)

7925-01 [Medium Right]
Overall Length: 11" (27,9 cm)
Handle-to-Bend Length: 7" (17,8 cm)


7925-02 [Medium Left]
Overall Length: 11" (27,9 cm)
Handle-to-Bend Length: 7" (17,8 cm)

7620-01 [Large Right]
Overall Length: 12" (30,5 cm)
Handle-to-Bend Length: 6" (15,2 cm)

7620-02 [Large Left]
Overall Length: 12" (30,5 cm)
Handle-to-Bend Length: 6" (15,2 cm)
Posterior-Inferior Retractors
Download Product Brochure (PDF)

TOP





OrthoLucent™ Richardson-type Soft Tissue Retractors

Radiolucent, lightweight retractor helps to retract soft tissues for enhanced exposure


Designed by Sean B. Kaminsky, MD


OrthoLucent™ Richardson-type Soft Tissue Retractor

OrthoLucent™ Richardson-type Soft Tissue Retractor

The OrthoLucent™ carbon fiber material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Four sizes available.

Product No's:

3231-23R [23 mm]
Overall Length: 13" (33 cm)
Large Blade: 23 mm x 36 mm

3231-30R [30 mm]
Overall Length: 13" (33 cm)
Large Blade: 30 mm x 42 mm

3231-37R [37 mm]
Overall Length: 13" (33 cm)
Large Blade: 37 mm x 52 mm

3231-44R [44 mm]
Overall Length: 13" (33 cm)
Large Blade: 44 mm x 78 mm
Download Product Brochure (PDF)

TOP





Rake Retractors with Ergonomic Handle

Designed for general use soft tissue retraction, the ergonomic handle allows for a better grip and less fatigue




Rake Retractors with Ergonomic Handle

Non-glare finish featured on the metal retractor parts.

Product No's:

4839 [3-Prong]
Overall Length: 9.5" (24,1 cm)
Rake Width: 13 mm
Rake Depth: 14 mm
4840 [4-Prong]
Overall Length: 9.5" (24,1 cm)
Rake Width: 19 mm
Rake Depth: 14 mm

Download Product Brochure (PDF)

TOP





Rib Periosteal Rasp

Designed to hold the subscapularis muscle open when performing a subscapularis split approach to the glenoid


Designed by Edward McFarland, MD


Rib Periosteal Rasp

Rib Periosteal Rasp

Product No: C1004
Overall Length: 17" (43,2 cm)
Handle Length: 5" (12,7 cm)
Rasp Pad: 7,5 x 12 mm
Download Product Brochure (PDF)

TOP





Rosen “V” Deep Soft Tissue Retractor

Designed for soft tissue retraction with an ergonomic handle


Designed by Adam Rosen, DO





Rosen “V” Deep Soft Tissue Retractor

Rosen “V” Deep Soft Tissue Retractor

Product No: 6239
Overall Length: 12" (30,5 cm)
Blade Depth: (3.5" (8,9 cm)
Blade Width: 1.75" (4,4 cm)
Download Product Brochure (PDF)

TOP





Short Tip Acetabular Retractor

Designed for retraction around the acetabulum





Short Tip Acetabular Retractor

Product No: C1014
Overall Length: 13.25" (33,7 cm)
Blade Depth: 4.5" (11,4 cm)
Blade Width: 1" (2,54 cm)


Download Product Brochure (PDF)


TOP





Sierra OrthoLucent™ Pelvic Osteotomy Retractor

Designed to help with retraction of the inner pelvis for direct visualization of the inner pelvis prior to iliac osteotomy, the retractor is made of a lightweight carbon fiber PEI composite material


Designed by Rafael J. Sierra, MD



Sierra OrthoLucent™ Pelvic Osteotomy Retractor

Sierra OrthoLucent™ Pelvic Osteotomy Retractor

Sierra OrthoLucent™ Pelvic Osteotomy Retractor

The OrthoLucent™ carbon fiber PEI material is radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No: 4541
Overall Length: 10.7" (27,2 cm)
Blade Width at Widest: 24,5 mm
Blade Width at End: 10 mm
Download Product Brochure (PDF)

TOP





Sierra OrthoLucent™ Soft Tissue Retractor

Radiolucent retractor designed for soft tissue protection of lateral muscles during pelvic osteotomy surgery


Designed by Rafael J. Sierra, MD


Sierra OrthoLucent™ Soft Tissue Retractor

Sierra OrthoLucent™ Soft Tissue Retractor

Manufactured of delrin and aluminum.

Product No: 4849
Overall Length:10.25" (26 cm)
Handle Length: 9" (22,9 cm)
Blade Depth: 4" (10,2 cm)
Blade Width: .75" (19 mm)
Download Product Brochure (PDF)

TOP





Sinha Retractor for Acetabular Reaming

Designed to retract and protect the femur while preparing the acetabulum for reaming during antero-lateral approach total hip surgery


Design modification by Ajoy K. Sinha, MD


Sinha Retractor for Acetabular Reaming



After the femur is prepared and the broach has been placed, the Sinha retractor is placed on the infero-lateral aspect of the acetabulum with the neck of the broach projecting through the large hole in the retractor blade. This serves to displace the femur posteriorly and to help protect the greater trochanter while acetabular reaming is conducted.

Product No: 6174
Overall Length: 12.5" (31,8 cm)
Blade Width: 32 mm
Hole: 18 mm W x 33 mm H
Download Product Brochure (PDF)

TOP





Stowell Modified Posterior Acetabular Retractor

Designed to be placed along the posterior rim of the acetabulum to facilitate exposure and acetabular preparation


Designed by R.L. Stowell, MD


Stowell Modified Posteror Acetabular Retractor




Product No: 7330
Overall Length: 14.5" (36,9 cm)
Handle Length: 5.25" (13,3 cm)
Blade Depth: 4" (10,4 cm)
Blade Width: 2.75" (7 cm)
Prongs: 8 mm Wide x 6 mm Long
Download Product Brochure (PDF)

TOP





Superior Retractor

Used for retraction around the acetabulum, can be self retaining with the use of 1/8" (3.2 mm) pins





Superior Retractor

Superior Retractor

Product No: 6027
Overall Length: 12.75 (32,4 cm)
Depth from Bend: 5.5" (14 cm)
Blade Width: 1" (25,4 mm)
Holes for Pins Up to: 1/8" (3,2 mm)
Download Product Brochure (PDF)

TOP





Taylor Retractors





Taylor Retractors
Product No's:
6330-01 [Standard]
Overall Length: 8" (20,3 cm)
Depth from Bend: 4" (10,2 cm)
Blade Width: 32 mm


6330-02 [Deep]
Overall Length: 9" (23 cm)
Depth from Bend: 5.5" (14 cm)
Blade Width: 32 mm


6330-03 [Deep with Pin Guides]
Overall Length: 9" (23 cm)
Depth from Bend: 5.5" (14 cm)
Blade Width: 32 mm
Guide for Pins Up To: .125" (3,2 mm)

Download Product Brochure (PDF)

TOP





Wide Rake Retractors with Ergonomic Handle

Designed for general use soft tissue retraction, the ergonomic handle allows for a better grip and less fatigue




Wide Rake Retractors with Ergonomic Handle



Sharp and dull teeth available in two depths.

Non-glare finish featured on the metal retractor parts.

Product No's:

6051 [Deep, Sharp]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 2.75" (7 cm)

6052 [Deep, Blunt]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 2.75" (7 cm)


6053 [Shallow, Sharp]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 1.875" (4,8 cm)

6054 [Shallow, Blunt]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 1.875" (4,8 cm)

Download Product Brochure (PDF)

TOP





Zelicof Winged Retractor

A non-modular, fixed point retractor for pelvic visualization in THA and pelvic surgery, with the distal post and wing providing bony stability and retraction


Designed by Steven B. Zelicof, MD Ph.D


Zelicof Winged Retractor


Product No's:

6117-5 [Thin Shaft]
Shaft Diameter: 6 mm
Overall Length: 9" (22,9 cm)
Pad Dimensions: 31,4 x 19,6 mm
Prong Length: .85" (21,6 mm)
Prong Width (before taper): 3 mm


6117-10 [Thick Shaft]
Shaft Diameter: 10 mm
Overall Length: 9" (22,9 cm)
Pad Dimensions: 31,4 x 19,6 mm
Prong Length: .85" (21,6 mm)
Prong Width (before taper): 3 mm

Download Product Brochure (PDF)

TOP



© 2023 Innomed, Inc. All rights reserved.
