Anterior Femoral Punches
|
NEW! Bechtold Ergonomic Orthopedic Mallet
|
Bone Hooks
|
Bone Hook with Cable/Wire Hole
|
|
|
|
|
|
|
Browner Wire Tightener
|
DMP Wire Tightener |
Extended Double Action Pliers
|
Extra Long Grasper
|
Femoral Punch
|
|
|
|
|
|
|
|
|
Incavo Wire Passer
|
Jones Mallet
|
Kudrna Hip Stem Taper Protectors
|
Large T-Handle Fixed Drivers
|
Lombardi Bone Hooks
|
|
|
|
|
 |
|
Lombardi Cement/Antibiotic Sifter
|
Lombardi Taper Cleaner
|
Long Bonney Tissue Forceps
|
Long Jaw Needle Nose Pliers
|
NEW! Ortho Mallets
|
|
|
|
|
|
|
|
|
Ortho Mallets with Easy Grip Handles
|
Orthopedic Needle Holder/Scissors |
Paprosky Acetabular Spreader
|
Sarraf Coated Hip Dislocation Hook
|
Shark Tooth Graspers
|
|
|
|
|
|
|
Soft Impact Mallets
|
Star Metal Cup Liner Removal Impactor |
NEW! T-Handle with A0-End
|
Universal Screwdriver Set
|
Whelan Double-Ended Suture Wire Passer
|
|
|

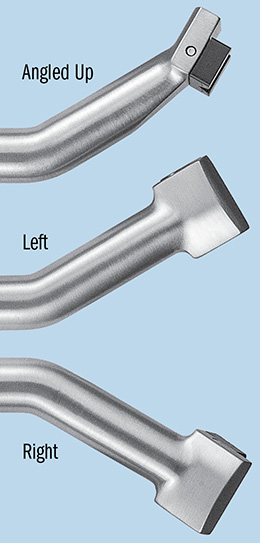

Anterior Femoral Punches
Designed with a delrin pad to help protect the femoral stem trunnion while removing the femoral head during anterior approach total hip revision arthroplasty |
|
|
|
Designed by Brandon Thompson, CST/CFA |
|
|
|
• Three stem angles allow choice of optimal approach
• Angled punches allow for better striking force to help break the taper of the head and stem
•
The delrin pad helps prevent scratching of the femoral stem trunnion
THE DELRIN PAD SHOULD NOT BE USED FOR IMPACTION.
Product No’s:
8626-A [Angled Up]
Overall Length 8.75" (22,2 cm)
Up Angle: 40°
8626-L [Left]
Overall Length: 9" (22,9 cm)
Left Angle: 40°
8626-R [Right]
Overall Length: 9" (22,9 cm)
Right Angle: 40°
|
|
|
Bechtold Ergonomic Orthopedic Mallet
Ergonomically designed for forward and backward strikes, featuring an ergonomic handle with a tamp |
|
|
|
Designed by Dustin Bechtold, MD |
|
|
|
Stainless steel head and shaft with an aluminum handle with a right-handed grip.
Large and small striking heads with smooth surface.
Palmar side of the mallet features a flat surface to slide along a broach or impacting type instrument for back slapping and serves well as an additional striking surface.
Product No: 7822 [2.7 lbs (1,22 kg)]
Weight: 2.7 lbs (1.22 kg)
Overall Length: 10.75" (27,3 cm)
Head Width: 4" (10,2 cm)
Large Head Diameter: 2" (5,1 cm)
Small Head Diameter: 1.5" (3,8 cm)
|
|
|

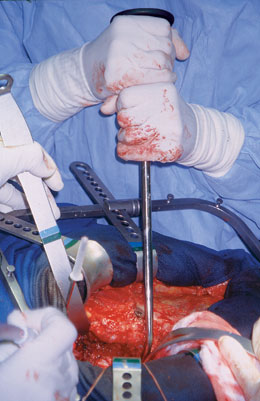

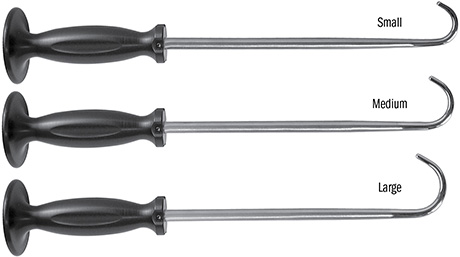

Bone Hooks
|
|
|
|
Designed by R.L. Wixson, MD
|
|
|
|
|
Designed for proximal femoral elevation in total hip replacement or in other surgery with a similar need for bone manipulation. The instrument has a blunt tip and a large handle to accommodate the use of two hands if desired.
Product No's:
5910 [Small]
Curve Diameter: 25 mm
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12,1 cm)
5915 [Medium]
Curve Diameter: 35 mm
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12,1 cm)
5920 [Large]
Curve Diameter: 50 mm
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12,1 cm)
|
|
|

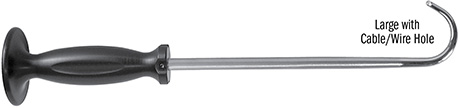

Bone Hook with Cable/Wire Hole
|
|
|
|
Designed by R.L. Wixson, MD & J. McCarthy, MD
|
|
|
 |
The instrument has a blunt tip with a 2 mm cable/wire hole, and a large handle to accommodate the use of two hands if desired.
Product No: 5920-01
Cable/Wire Hole Diameter: 2 mm
Curve Diameter: 50 mm
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12,1 cm)
|
|
|
Browner Wire Tightener
Wire is passed through the distal arm hole and into the separate drum holes, and can then be tightened and rotated before being cut with a wire cutter
|
|
|
|
Designed by Bruce D. Browner, MD |
|
|
|
Product No: 8251
Overall Length: 6" (15,2 cm)
Width: 3.75" (9,5 cm)
Wire Hole Diameters: .125" (3,2 mm)
|
|
|
DMP Wire Tightener
Used to hand tighten a cerclage wire around a bone |
|
|
|
Designed by DMP |
|
|
 |
Now with four wire holes — two for up to 20 gauge wires, and two for up to 18 gauge wires. T-Handle end is used to hand tighten a wire.
Product No: 8729
Overall Length: 4.5" (11,4 cm)
Handle Width: 2.625" (6,7 cm)
End Diameter: 15 mm
|
|
|
Extended Double Action Pliers
|
|
|
|
|
|
|
 |
Product No’s:
3962 [Needle Nose]
Overall Length: 13" (33 cm)
Jaw Length: 2.625" (6,7 cm)
Jaw Width: 2.5 mm
3961 [Blunt Nose]
Overall Length: 11.75" (29,9 cm)
Jaw Length: 1.25" (3,2 cm)
Jaw Width: 10 mm
|
|
|

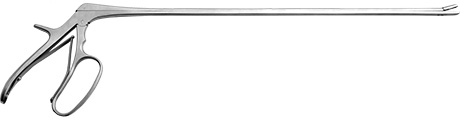

Extra Long Grasper
Designed for reaching deep into the medullary canal |
|
|
|
|
|
|
|
Product No: 1782
Overall Length: 15" (38,1 cm)
|
|
|

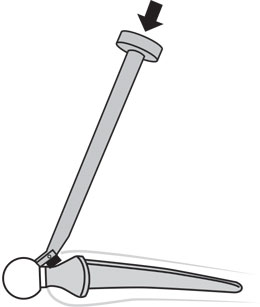

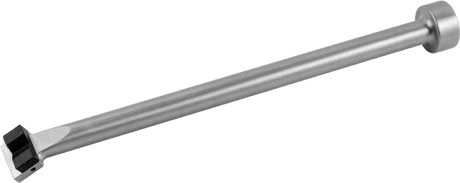

Femoral Head Disengaging Punch
Designed to help protect the femoral stem trunnion while removing the femoral head |
|
|
|
Designed by Brandon Thompson, CST/CFA |
|
|
|
.jpg)
The delrin pad helps prevent scratching of the femoral stem trunnion. The punch angle allows for better striking force to help break the taper of the head and stem.
THE DELRIN PAD SHOULD NOT BE USED FOR IMPACTION.
Product No: 8626
Overall Length: 9" (22,9 cm)
Shaft Diameter: .5" (12,7 mm)
Punch Platform Offset Angle: 30°
Punch Platform Delrin End: 10 mm x 20 mm
|
|
|
Incavo Wire Passer
Used for passing multiple cerclage wires around bone |
|
|
|
Designed by Stephen Incavo, MD |
|
|
|
Designed to pass multiple cerclage wires around a bone during a multiple wire wrap procedure. Accepts a 5/32" (4 mm) diameter wire.
Product No's:
8610-01 [Small]
Overall Length: 7.5" (19,1 cm)
Accepts Wire Up To: 4 mm (5/32")
For Bone Diameter Up To: 1.2" (3 cm)
8610-02 [Large]
Overall Length: 8.675" (21,9 cm)
Accepts Wire Up To: 4 mm (5/32")
For Bone Diameter Up To: 2.4" (6 cm)
|
|
|
Jones Mallet
Unique hand fitting shape provides superior gripping strength
|
|
|
|
Designed by Dickie Jones, MD
|
|
|
|
|
This striking instrument has a unique hand fitting shape that provides superior gripping strength for accurate light to heavy impaction.
Product No: 7825 [2.4 lbs (1,09 kg)]
Overall Length: 8.25" (21 cm)
Head Width: 3" (7,6 cm)
Head Diameter: 1.5" (3,8 cm
|
|
|
Kudrna Hip Stem Taper Protectors
Used to cover and protect the hip stem taper of a femoral component — especially helpful in cup revision surgery |
|
|
|
Designed by James Kudrna, MD |
|
|
|
Product No's:
1151 [11/13]
1152 [12/14]
1153 [14/16]
|
|
|
Large T-Handle Fixed Drivers
Large easy grip soft silicone handled drivers help provide a sturdy non-slip grip
|
|
|
|
|
|
|
|
The two standard Quick-connect models release by pulling the collar backward, while the Reverse Quick-connect model is designed to have the collar be pushed forward for release.
Product No's:
8248 [Zimmer Hall Quick-connect]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)
8248-01 [Reverse Quick-connect Zimmer Hall]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)
8249 [Hudson Quick-connect]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)
|
|
|

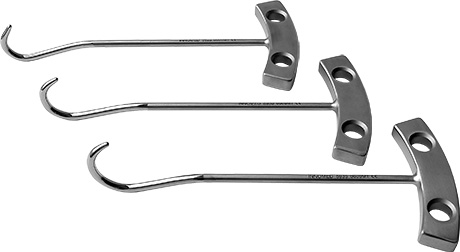

Lombardi Bone Hooks
|
|
|
|
Designed by Adolph V. Lombardi, Jr., MD
|
|
|
|
|
3 Sizes Available
Product No’s:
5925 [Small]
Curve Diameter: 25 mm
Overall Length: 10" (25,4 cm)
5930 [Medium]
Curve Diameter: 35 mm
Overall Length: 10" (25,4 cm)
5935 [Large]
Curve Diameter: 55 mm
Overall Length: 10" (25,4 cm)
|
|
|
Lombardi Cement/Antibiotic Sifter
|
|
|
|
Designed by Adolph V. Lombardi Jr., MD |
|
|
|
Product No: 5215
Overall Length: 14" (35,6 cm)
Sifter Diameter: 5" (12,7 cm)
|
|
|

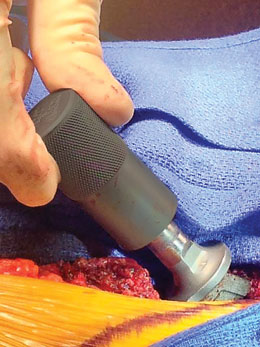

Lombardi Taper Cleaner
Designed to help clean a hip stem taper of corrosive byproducts prior to placement of the new femoral head |
|
|
|
Designed by Adolph V. Lombardi Jr., MD |
|
|
|
Product No's:
8034 [Small Short Taper 11.3/12.2 mm]
Overall Length: 2.125" (5,4 cm)
Outside Diameter: 1" (2,54 cm)
8034-01 [Long Taper 11.4/13.4 mm]
Overall Length: 2.125" (5,4 cm)
Outside Diameter: 1" (2,54 cm)
8035-01 [Standard Taper 11/13 mm]
Overall Length: 2.125" (5,4 cm)
Outside Diameter: 1" (2,54 cm)
8035-02 Standard Taper 12/14 mm]
Overall Length: 2.125" (5,4 cm)
Outside Diameter: 1" (2,54 cm)
8035-03 [Standard Taper 14/16 mm]
Overall Length: 2.125" (5,4 cm)
Outside Diameter: 1" (2,54 cm)
|
|
|
Long Bonney Tissue Forceps
Extra length—3" (7,6 cm) more than standard—allows for use in deep wound areas |
|
|
|
|
|
|
 |
Product No: 5040
Overall Length: 10" (25,4 cm)
|
|
|
Long Jaw Needle Nose Pliers
|
|
|
|
|
|
|
|
|
Product No: 1833
Overall Length: 7" (17,8 cm)
Jaw Length: 2.25" (5,7 cm)
Jaw Width Tapered from: 8 mm to 1.5 mm
Jaw Height Tapered from: 12 mm to 2.5 mm
|
|
|
Ortho Mallets
Designed with a larger diameter and longer handle for a better grip—helps to exert force on osteotomes, chisels, gauges and other instruments |
|
|
|
|
|
|
|
Product No's:
7811 [Standard with Flat Sides]
Overall Length: 7.75" (19,7 cm)
Handle Length: 4.812 (12,2 cm)
Head Diameter: 1.5" (3,8 cm)
Head Weight: 2.25 lb. (1.02 kg)
7812 [Standard]
Overall Length: 7.75" (19,7 cm)
Handle Length: 4.812 (12,2 cm)
Head Diameter: 1.5" (3,8 cm)
Head Weight: 2.5 lb. (1.13 kg)
|
|
|
Ortho Mallets with Easy Grip Handles
Designed to exert force on osteotomes, chisels, gouges and other instruments
|
|
|
|
Cloward-style designed by J. Stiehl, MD
|
|
|
|
|
These solid stainless steel mallets
each have a comfortable 4-1/2" grip
made of a textured silicone that helps
prevent the surgeon’s gloved hand from
slipping and helps maintain a solid grip.
Product No's:
7810 [Small]
Overall Length: 8" (20,3 cm)
Handle Length: 4.5" (11,4 cm)
Head Weight: 1 lb. (.45 kg)
Head Diameter: 1.3125" (3,3 cm)
7815 [Large]
Overall Length: 8" (20,3 cm)
Handle Length: 4.5" (11,4 cm)
Head Weight: 1.75 lb. (.8 kg)
Head Diameter: 1.5" (3,8 cm)
|
|
|

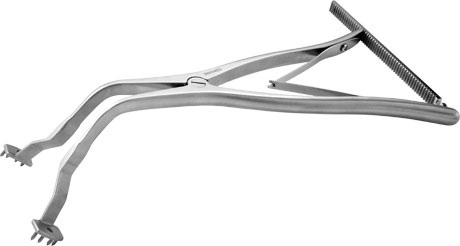

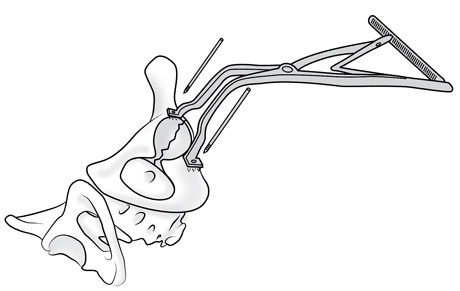

Paprosky Acetabular Spreader
Designed to distract an acetabular discontinuity |
|
|
|
Designed by Wayne Paprosky, MD |
|
|
|
Product No: 1879
Overall Length: 12" (30,5 cm)
Pads: 14 mm x 22 mm
|
|
|

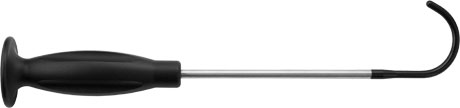

Sarraf Coated Hip Dislocation Hook
Designed to aid in dislocating a femoral stem while helping to prevent damage to the trunnion |
|
|
|
Designed by Khaled M. Sarraf, MD |
|
|
|
Coated hook end helps to prevent from marring component surfaces.
Can also be used as a bone hook, and for femoral elevation.
Product No: 5905
Curve Diameter: 50 mm
Overall Length: 12.5" (31,8 cm)
Handle Length: 4.75" (12,1 cm)
|
|
|
Shark Tooth Graspers
Graspers sharp teeth help grasp onto tissue and bone
|
|
|
|
Designed by Luis Ulloa |
|
|
|
Helpful in removing the labrum, and osteophytes around the acetabulum and around the glenoid. Also helps to remove meniscus, osteophytes and loose bodies. Helps facilitate working through a small incision without disrupting vision.
Product No’s:
STANDARD HANDLE
1797 [5" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)
1798 [7" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)
1799 [9" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)
1796 [12" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 15" (38,1 cm)
Shaft Length: 12" (30,5 cm)
SMALL GRIP HANDLE
Small Grip Handle designed with the grip closer together for easier gripping and to help reduce hand fatigue.
1798-SG [7" Shaft with Small Grip Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)
1799-SG [9" Shaft with Small Grip Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)
|
|
|
Soft Impact Mallets with Easy Grip Handles
Provides shock absorbing force
|
|
|
|
|
|
|
|
Designed to have a shock-absorbing force, providing less bounce or wasted force. The mallet is filled with a shock-absorbing media and has a flat striking surface to keep the mallet centered on an instrument.
The comfortable Easy Grip handle is made of a textured silicone that helps prevent the surgeon’s gloved hand from slipping and helps maintain a solid grip. The bottom can also be used to tap an implant in place.
The mallet with delrin head features a replaceable delrin head.
Product No’s.:
7820 [2 lbs. / .907 kg]
Overall Length: 10.5" (26,7 cm)
Handle Length: 5" (12,7 cm)
Head Width: 3.5" (8,9 cm)
Head Diameter: 1.375" (3,5 cm)
7832 [2 lbs. / .907 kg with Replaceable Delrin Head]
Overall Length: 10.5" (26,7 cm)
Handle Length: 5" (12,7 cm)
Head Width: 3.5" (8,9 cm)
Head Diameter: 1.375" (3,5 cm)
7837 [3 lbs. / 1,36 kg]
Overall Length: 11" (27,9 cm)
Handle Length: 5" (12,7 cm)
Head Width: 3.5" (8,9 cm)
Head Diameter: 1.875" (4,8 cm)
Delrin Head Replacements for 7832:
7832-HEAD01 [.5" Stud] Single
7832-HEAD02 [.5" Stud] 3-Pack
7832-HEAD03 [.875" Stud] Single
7832-HEAD04 [.875" Stud] 3-Pack
 |
|
|
Soft Impact Mallet with Weidman Silicone Handle |
|
|
|
Handle designed by Kevin Weidman, MD |
|
|
|
Product No: 7821 [2 lbs. (.907 kg)]
Overall Length: 10.625" (27 cm)
Grip Length: 5.5" (14 cm)
Head Width: 3.5" (8,9 cm)
Head Diameter: 1.375" (3,5 cm)
|
|
|

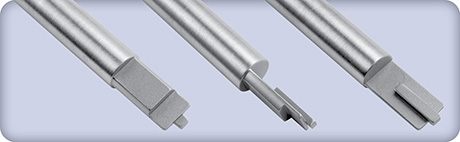

Star Metal Cup Liner Removal Impactor
Designed to engage the rim of a metal cup to help with removal of the metal liner |
|
|
|
Designed by Andrew M. Star, MD |
|
|
|
The impactor is placed on the edge of the cup with the tip in the dimple in the cup rim (facing inward.) The impactor should contact the shell and not the liner. Tap sharply several times, then move the impactor to another location at least 90 degrees away from the first and repeat tapping sharply several times. Vibration from tapping the edge of the shell helps cause the liner to become disengaged for removal.
Product No: 5014
Overall Length: 8" (20,3 cm)
|
|
|
T-Handle with A0-End |
|
|
|
|
|
|
|
Product No: 2022-T
Overall Length: 5.9" (15 cm)
Handle Width: 3.15" (8 cm)
|
|
|
Universal Screwdriver Set
Helps eliminate the opening of multiple sterile packs when a specific size or style of screwdriver is needed
|
|
|
|
|
|
|
|
Helpful during revision total joint surgery where screws have been used, removal of bone plates, fracture fixation screws or bone graft screws. Set consists of: 7 (seven) double ended screwdriver bits — small & large single slot, cross & cruciate, 3.5 mm & 4.5 mm hex, small & large phillips, small, medium, & large star — a handle which accommodates any of the above bits, and a sterilization case.
Product No's: 5195 [Complete Set with Case]
Also available individually:
5195-01 [Handle]
5195-02 [Straight (single slot) – Lg & Sm]
Large: 7 x 1.5 mm, Small: 5 x 1 mm
5195-03 [Cross/Cruciate]
Large: 7 mm, Small: 6 mm
5195-04 [Hex]
Large: 4.5 mm, Small: 3.5 mm
5195-05 [Phillips]
Large: 4 mm, Small: 3.5 mm
5195-08 [Small Star: #6 & #8]
5195-06 [Medium Star: #10 & #15]
5195-07 [Large Star: #20 & #25]
|
|
|
Whelan Double-Ended Suture Wire Passer
Passer guide and malleable passer designed to pass suture wires around a bone |
|
|
|
Designed by Edward J. Whelan, III, MD |
|
|
|
The passer guide is placed around the bone, and the thin malleable passer is inserted at the handle end and follows the grooved passer around. The suture wire (up to 18 gauge) is attached to the keyholed end of the passer, which can then be reversed out of the passer, drawing the suture wire around the bone.
Product No's:
8300-00 [Set]
Set includes Passer Guide, two
Passers, and a sterilization case.
Individual Instruments:
8300-01 [Passer Guide]
Overall Length: 8.125" (20,6 cm)
Outside Width: 9 mm
Inside Groove Width: 6.5 mm
8300-02 [Passer]
Overall Length: 7.5" (19,1 cm)
Width: 4.6 mm
1025 [Sterilization Case]
|
|
|
© 2023 Innomed, Inc. All rights reserved.
|
