AK Fracture Reducer
|
Bacastow Tibial Plateau Elevators
|
Beard IM Nail Guide Wire Clamp
|
NEW! Bechtold Ergonomic Orthopedic Mallet
|
|
|
|
|
|
|
|
Beicker Curette Suction Device
|
Bradley Periosteal Elevator
|
Browner Wire Tightener
|
Cannulated Fracture Awl
|
Chandran Double Ball Spike
|
|
|
|
|
|
|
Charnley Type Tissue Needle Forceps |
Clear Vision Debris Shield
|
DMP Wire Tightener
|
Extended Drill Sleeves
|
Freeman Forceps
|
|
|
|
|
|
|
|
Gelbke Cobb Elevator with Suction
|
Gray Syringe Assist with Ergonomic Handle
|

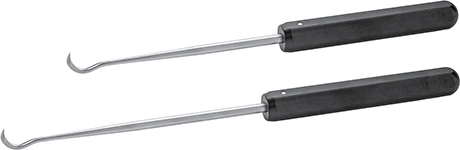

Hooked Bone Awl
|
Incavo Wire Passer
|
New! Izuka Cannulated Fracture Awls & Trocar Set
|
|
|
|
|
|
|
Jones Mallet |
K-Wire Bender/Cutter
|
Kodros Radiolucent Awl
|
Large T-Handle Fixed Drivers
|
Long Ball Spike with Bell Handle
|
|
|
|
|
|
|
|

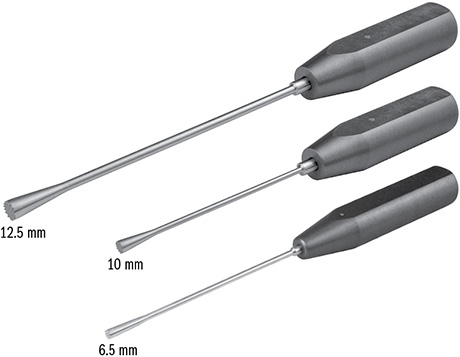

Malleable Bone Tamps
|
Malleable Bone Tamp — Extra Small
|
New! Mini Lexer Gouges
|
Modular Impactor Set
|
Ortho Impactors
|
|
|
|
|
|
|
NEW! Ortho Mallets |
Ortho Mallets with Easy Grip Handle
|
Ortho Suction Tube
|
Orthopedic Needle Holder/Scissors
|
Periosteal Elevator
|
|
|
|
|
|
|
|
Pin Inserter/Extractor
|
Resnick Small Bone Tamp with Oblique K-Wire Hole
|

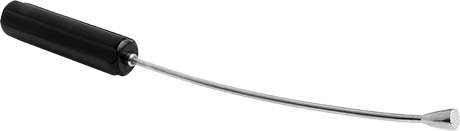

Sandman Curved Bone Punch
|
Sarraf Fracture Reduction Thimble
|

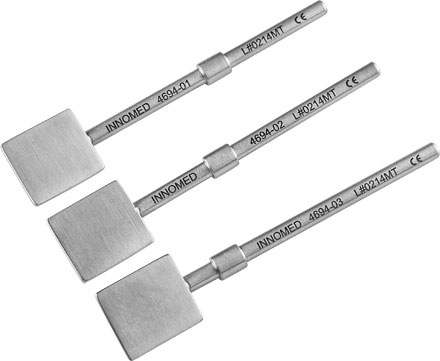

Shouldered Pin Retractors
|
|
|
|
|
|
|
|
|

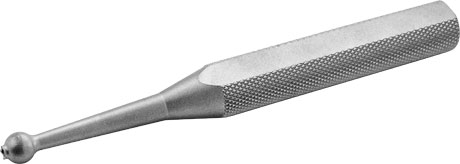

Small Cannulated Ball Spike
|
Soft Impact Mallets
|

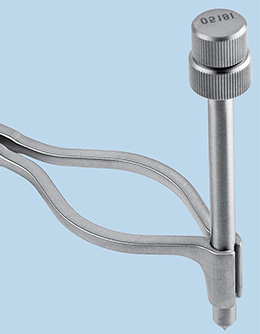

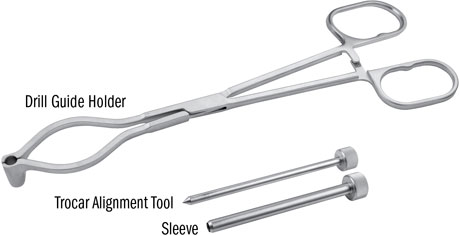

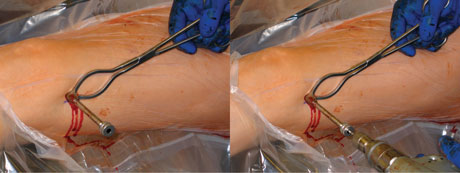

Stanton Nail/Screw Drill Guide Assembly
|

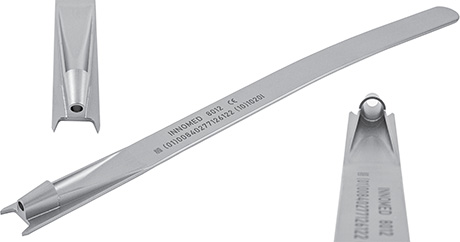

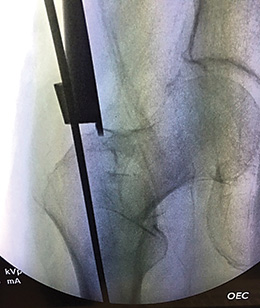

Stoll Retractor/Wire Guide
|

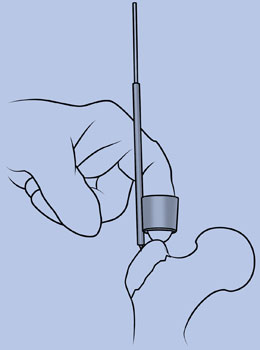

Sumko Surgical Finger Guide
|
|
|
|
|
|
|
NEW! T-Handle with A0-End
|
Universal Bone Grafting/Impacting Forceps
|
Universal Screwdriver Set
|
Vaughan Endzone Retractor
|
Wagner Osteotome Handle
|
|
|
|
|
|
|

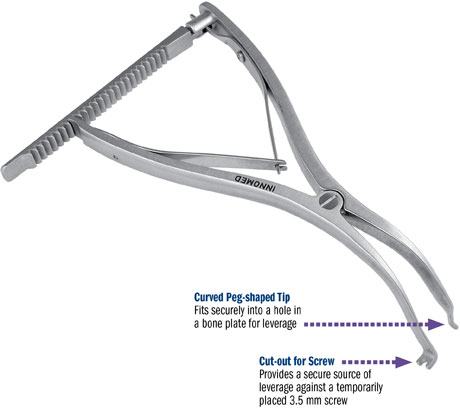

Wixted Fracture Distractor
|

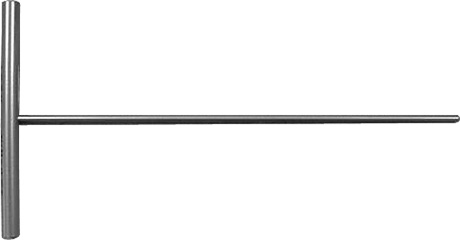

Wubben Guide Rod Pusher
|
|
|
|
|
|
AK Fracture Reducer
Designed to help reduce long bone fractures of the femur and tibia, especially helpful with shortened long bone fractures due to young, strong musculature in acute trauma, or neglected fractures due to overriding circumstances or late referral |
|
|
|
Designed by Byron McCord, MD |
|
|

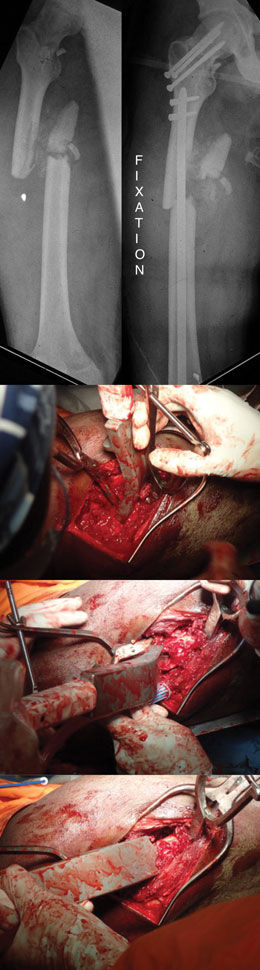

The curved, serrated tip helps to wedge and hold the reducer in place.
The curved trough side of the reducer helps capture
and control the bone while leverage is applied.

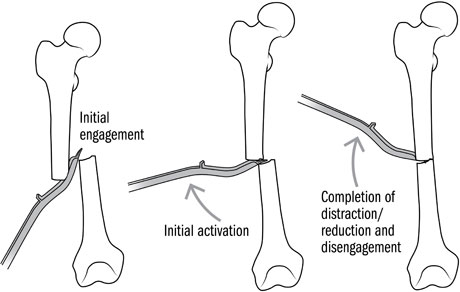

Once in place, by pushing on the T-handle,
the surgeon uses the reducer to help
move the bones into alignment for plating or rodding.
|
Product No: 3870
Overall Length: 12.5" (31,8 cm)
Blade Width: 1.5" (3,8 cm)
|
|
|

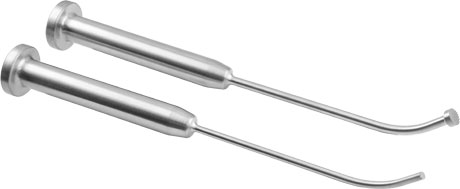

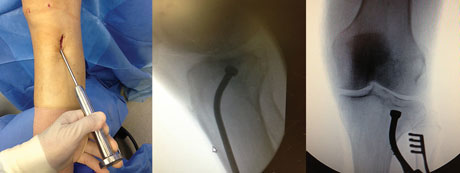

Bacastow Tibial Plateau Elevators
Designed to help with indirect reduction of a depressed tibial plateau fracture, and can be used with arthropscopic visualization and percutaneous fixation |
|
|
|
Designed by David Bacastow, MD |
|
|
|
Product No's:
5297 [Starter Elevator]
Overall Length: 11" (27,9 cm)
Tamp Diameter: 4,7 mm
5298 [Finish Elevator]
Overall Length: 11" (27,9 cm)
Tamp Diameter: 10,4 mm
|
|
|
Beard IM Nail Guide Wire Clamp
Designed to help provide quick grasp-and-release of an IM guide wire for positioning and advancement along the length of the guide wire |
|
|
|
Designed by David Beard, MD |
|
|
|
Anatomic pistol grip for comfortable use.
Facilitates fracture reduction in appropriate cases.
Universal to all fixation systems using IM guide wires and IM fixation.
For use with pins up to 4 mm.
Product No's:
3019 [Beard Clamp with Ratchet]
Dimensions: 5.5" w x 6" h (14 cm x 15,2 cm)
3019-01 [Beard Clamp without Ratchet]
Dimensions: 5.5" w x 6" h (14 cm x 15,2 cm)
|
|
|
Bechtold Ergonomic Orthopedic Mallet
Ergonomically designed for forward and backward strikes, featuring an ergonomic handle with a tamp |
|
|
|
Designed by Dustin Bechtold, MD |
|
|
|
Stainless steel head and shaft with an aluminum handle with a right-handed grip.
Large and small striking heads with smooth surface.
Palmar side of the mallet features a flat surface to slide along a broach or impacting type instrument for back slapping and serves well as an additional striking surface.
Product No: 7822 [2.7 lbs (1,22 kg)]
Weight: 2.7 lbs (1.22 kg)
Overall Length: 10.75" (27,3 cm)
Head Width: 4" (10,2 cm)
Large Head Diameter: 2" (5,1 cm)
Small Head Diameter: 1.5" (3,8 cm)
|
|
|
Beicker Curette Suction Device
Designed to help visualization of a fracture site within a fracture hematoma |
|
|
|
Designed by Clint Beicker, MD |
|
|
|
Also useful for arthroscopic curettage of osteochondral lesions.
Product No: 4231
Overall Length: 10.5" (26,7 cm)
Curette Cup: 7,5 mm x 5,5 mm
|
|
|
Bradley Periosteal Elevator
|
|
|
|
Designed by Gary W. Bradley, MD |
|
|
|
Product No's:
4719 [1/2"]
Overall Length: 11" (27,9 cm)
Blade Width: .5" (13 mm)
4720 [3/4"]
Overall Length: 11" (27,9 cm)
Blade Width: .75" (19 mm)
|
|
|

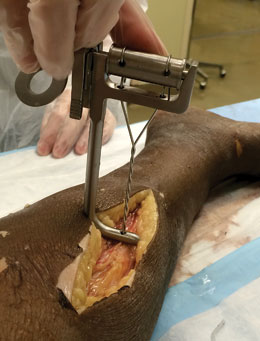

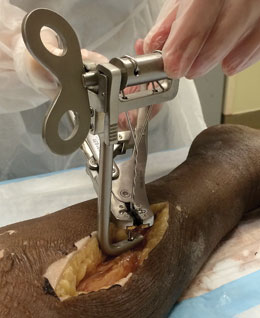

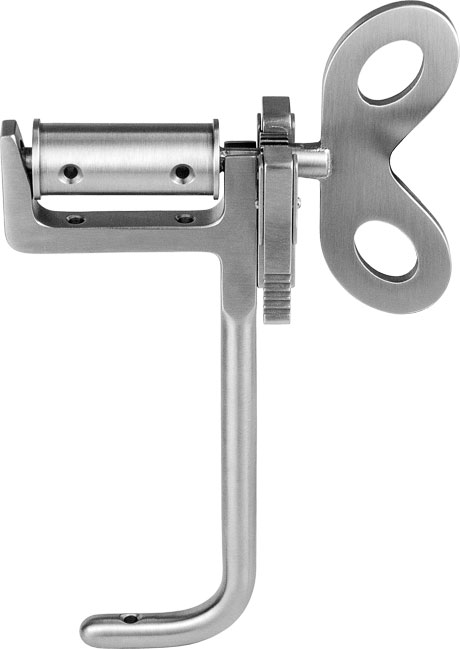

Browner Wire Tightener
Wire is passed through the distal arm hole and into the separate drum holes, and can then be tightened and rotated before being cut with a wire cutter
|
|
|
|
Designed by Bruce D. Browner, MD |
|
|
|
Product No: 8251
Overall Length: 6" (15,2 cm)
Width: 3.75" (9,5 cm)
Wire Hole Diameters: .125" (3,2 mm)
|
|
|

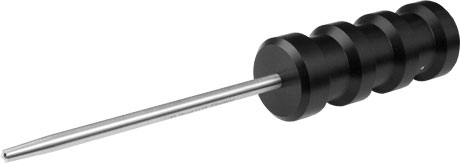

Cannulated Fracture Awl
Helps to reduce fractures without slipping off the bone, and cannulated to allow the placement of k-wires
|
|
|
|
|
|
|
|
Product No: 8091
Overall Length: 7" (17,8 cm)
Handle Length: 3.3" (8,4 cm)
Cannula fits wire up to: .062" (1.6 mm)
|
|
|

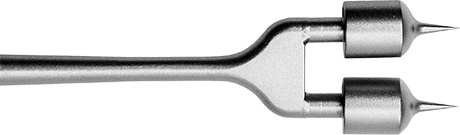

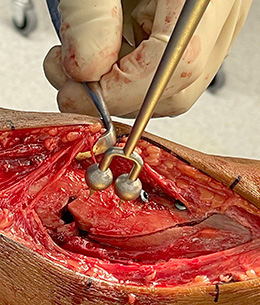

Chandran Double Ball Spike
Designed to help rotate and control a butterfly bone fragment for fixation |
|
|
|
Designed by Rama E. Chandran, MD |
|
|
|
Product No: 8027
Overall Length: 12.5" (31.8 cm)
Handle Length: 4.625" (1,17 cm)
|
|
|
Charnley Type Tissue Needle Forceps
Helpful for wound closure in deep areas with fascia under tension, the forceps can help retrieve a needle in a tight spot
|
|
|
|
Designed by Amal Das Jr., MD
|
|
|
|
Product No: 1165
Overall Length: 6.875" (17,5 cm)
|
|
|

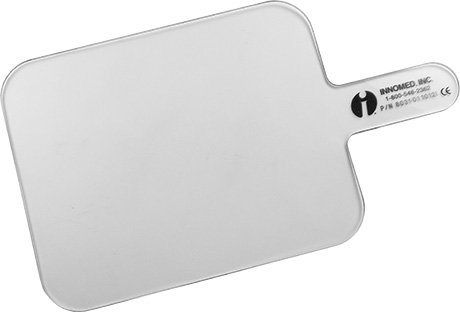

Clear Vision Debris Shield
Provides a degree of restriction from flying debris or liquid during surgery |
|
|
|
Designed by R. Barry Sorrells, MD |
|
|
|
Held between the surgical site and the operating personnel, the shield provides a clear undistorted view, while helping to protect the patient and personnel from possible contamination. The shield is autoclavable and gas sterilizable in a flat position.
Product No: 8031-01
Dimensions:
8" x 10.25" (20,3 cm x 26 cm) (not including handle)
|
|
|

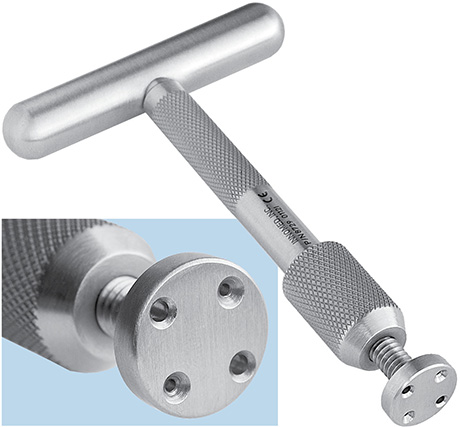

DMP Wire Tighteners
Used to hand tighten a cerclage wire around a bone
|
|
|
|
Designed by DMP
|
|
|
 |
Now with four wire holes — two for up to 20 gauge wires, and two for up to 18 gauge wires. T-Handle end is used to hand tighten a wire.
Product No: 8729
Overall Length: 4.5" (11,4 cm)
Handle Width: 2.625" (6,7 cm)
End Diameter: 15 mm
|
|
|
Dodson Extremity Skin Saver
Designed to help protect the patient's skin when removing a disposable tourniquet |
|
|
|
Designed by Mark A. Dodson, MD |
|
|
|
After the device is laid on the skin, the disposable tourniquet is then rolled over it, and stays in position until removed at the end of the case.
Product No: 8628
Overall Length: 4.75" (12,1 cm)
Width: 1.5" (3,8 cm)
Lip: .5" (1,3 cm)
|
|
|
Extended Drill Sleeves
Designed to help reduce fractures when k-wires are passed through, the extra long drill sleeve helps to protect soft tissues and prevent the need for stacking two drill sleeves |
|
|
|
Designed by Reza Firoozabadi, MD |
|
|
Serrated tips allow for better grip when drilling
at an
angleor when pushing a fracture fragment
to assist with fracture reduction
Sleeve can be used as a reduction aid with
placement of a kirschner wire through sleeve
Collaborated tips which allow placement of appropriate
size drills for lagging by technique — as an example a
2.5 end will fit into a 3.5 drill hole
|
Note 2.0 mm end of drill sleeve placed into a predrilled 2.7 mm hole, utilized as a lag by technique 2.7 mm screw.
Product No's:
3014-00 [Set of Three]
Set Includes/ Available Separately:
3014-01 [2.4/1.8 mm]
Overall Length: 6.875" (17,6 cm)
Handle Length: 4.875" (12,4 cm)
Guide Tube Length: 2.25" (5,7 cm)
Guide Angle from Handle: 30°
3014-02 [2.7/2.0 mm]
Overall Length: 6.875" (17,6 cm)
Handle Length: 4.875" (12,4 cm)
Guide Tube Length: 2.25" (5,7 cm)
Guide Angle from Handle: 30°
3014-03 [3.5/2.5 mm]
Overall Length: 6.875" (17,6 cm)
Handle Length: 4.875" (12,4 cm)
Guide Tube Length: 2.25" (5,7 cm)
Guide Angle from Handle: 30°
Case example of using modified 3.5/2.5 mm drill sleeve for placing 3.5 mm screws in a forearm fracture case. Note how extended sleeve protects soft tissues during drilling.
|
|
|
Freeman Forceps
Designed to help with hand pain, fatigue, and hand arthritis
|
|
|
|
Designed by Carl R. Freeman, MD
|
|
|
|
|
Allows surgeons to utilize a forceps or pickup type instrument using a more mechanically and ergonomically favorable grip. Forceps can be used with a full-hand grip or “palmed.”
Product No: 1174
Overall Length: 6.875" (17,5 cm)
|
|
|
Gelbke Cobb Elevator with Suction
Designed to be used during exposure of the posterior spine, as well as for pelvic and acetabular trauma cases |
|
|
|
Designed by Martin K. Gelbke, MD |
|
|
|
Ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No: 3433
Overall Length: 12.75" (32,4 cm)
Cobb End Width: 18 mm (.7")
Shaft plus Head Length: 5.5" (15 cm)
|
|
|
Gray Syringe Assist with Ergonomic Handle
For use in the O.R or the office, the design helps to prevent hand fatigue and pain when injecting with a 20mL syringe over multiple cases |
|
|
|
Designed by Robert Gray, MD |
|
|
|
Sterilizable for O.R use, such as injecting the posterior capsule during TKA.
Especially useful for injecting preoperative local anesthesia for WALANT surgery.
Uses finger flexors to generate more force over more surface area than only the thumb flexor.
Ratchet mechanism ensures maximal grip force generation throughout entire injection.
Syringe not included.
Product No: 8988
Overall Length – Closed: 5.25" (13,3 cm)
Overall Length – Open: 7.5" (19,1 cm)
Height: 5" (12,7 cm)
Syring Diameter: 21 mm
Patent Pending
|
|
|
Hooked Bone Awl
"Shoulder hook" awls designed to help with manipulation of bone fragments for fixation |
|
|
|
Designed by Reza Firoozabadi, MD |
|
|
|
Above: long hooked bone awl being used to assist with reduction of the pubic symphysis in the setting of a t-type acetabular fracture.
|
Product No's
5078 [Standard]
Overall Length: 10.5" (26,7 cm)
Handle Length: 5" (12,7 cm)
5078-01 [Long]
Overall Length: 13.375" (34 cm)
Handle Length: 6" (15,2 cm)
Above: standard hooked bone awl being used to gain length to assist with reduction of a fibula fracture. A 2mm pilot hole is made to seat the tip of the bone awl.
Above: long hooked bone awl being used to lateralize proximal fragment, while spike pusher being used distally to medialize distal fragment. Of note the long hooked bone awl is used to minimize radiation to the surgeons hands.
|
|
|

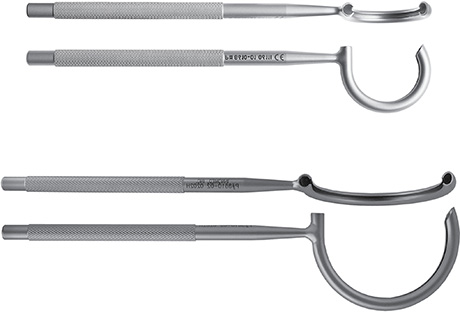

Incavo Wire Passer
Used for passing multiple cerclage wires around bone
|
|
|
|
Designed by Stephen Incavo, MD
|
|
|
|
|
Designed to pass multiple cerclage wires around a bone during a multiple wire wrap procedure. Accepts a 5/32" (4 mm) diameter wire.
Product No's:
8610-01 [Small]
Overall Length: 7.5" (19,1 cm)
Accepts Wire Up To: 4 mm (5/32")
For Bone Diameter Up To: 1.2" (3 cm)
8610-02 [Large]
Overall Length: 8.675" (21,9 cm)
Accepts Wire Up To: 4 mm (5/32")
For Bone Diameter Up To: 2.4" (6 cm)
|
|
|
Izuka Cannulated Fracture Awls & Trocar Set
Cannulated awls (blunt tip and sharp tip) with trocar designed to help safely and accurately place standard K-wires up to 0.0825” (2,1 mm) with either open or percutaneous techniques, helping to avoid soft tissue injuries that may occur without the use of such devices |
|
|
|
Designed by Byron Izuka, MD |
|
|
|
The sharp tip design minimizes migration of the awl when inserting the K-wire at an oblique angle to the bone surface.
May also be used to place K-wires for use with specialty sets (with guide wires that are shorter than standard K-wires) with minor modifications in technique.
The trocar is used to help remove any tissue in the awl.
Product No’s:
8093-00 [Set]
Set Includes / Available Individually:
8093-01 [Blunt Awl]
Overall Length: 4.95" (12,6 cm)
Shaft Width: .35" (9 mm)
Cannulated for use with K-wires up to: .0825" (2,1 mm)
8093-02 [Sharp Awl]
Overall Length: 4.95" (12,6 cm)
Shaft Width: .35" (9 mm)
Cannulated for use with K-wires up to: .0825" (2,1 mm)
8093-03 [Trocar Rod]
Overall Length: 5.62" (7,4 cm)
Shaft Width: .079" (2 mm)
Rounded Head End Diameter: .8" (2 cm)
|
|
|
Jones Mallet
Unique hand fitting shape provides superior gripping strength
|
|
|
|
Designed by Dickie Jones, MD
|
|
|
|
|
This striking instrument has a unique hand fitting shape that provides superior gripping strength for accurate light to heavy impaction.
Product No: 7825 [2.4 lbs (1,09 kg)]
Overall Length: 8.25" (21 cm)
Head Width: 3" (7,6 cm)
Head Diameter: 1.5" (3,8 cm
|
|
|
K-Wire Bender/Cutter
Designed to bend a K-wire while extending from bone without applying mechanical strain
|
|
|
|
|
|
|
|
Can bend and cut K-wires measuring
1 to 1.6 mm (.039" to .062") in diameter.
The K-wire only needs to extend 20mm from the skin surface to be bent.
Product No: 2111
Overall Length: 6.625" (16,5 cm)
|
| |
|

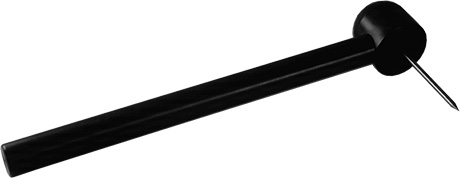

Kodros Radiolucent Awl
Helps locate holes in interlocking nails |
|
|
|
Modified by S. Kodros, MD |
|
|
|
Product No: 8030-01
Pin Diameter: 3.7 mm
Pin Length: 67 mm
|
|
|
Large T-Handle Fixed Drivers
Large easy grip soft silicone handled drivers help provide a sturdy non-slip grip
|
|
|
|
|
|
|
|
The two standard Quick-connect models release by pulling the collar backward, while the Reverse Quick-connect model is designed to have the collar be pushed forward for release.
Product No's:
8248 [Zimmer Hall Quick-connect]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)
8248-01 [Reverse Quick-connect Zimmer Hall]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)
8249 [Hudson Quick-connect]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)
|
|
|
Long Ball Spike with Bell Handle
Designed with a long shaft for use in deep wounds
|
|
|
|
|
|
|
|
Product No: 8032 [Long]
Overall Length: 12" (30,6 cm)
|
|
|

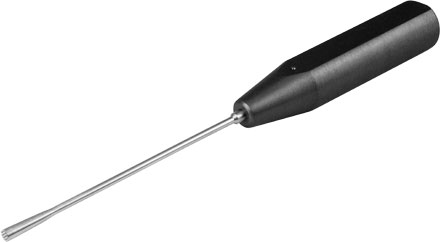

Malleable Bone Tamp — Extra Small
Designed to help impact bone |
|
|
|
Modified by Serge Kaska, MD & Amal Das, MD |
|
|
|
Product No: 5296-02 [Extra Small]
Overall Length: 11.4" (29 cm)
Shaft Length: 5.9" (15 cm)
Impactor Diameter: 6.5 mm
|
|
|
Mini Lexer Gouges
Can be used to help remove bone from around screw heads or broken screws |
|
|
|
|
|
|
|
Product No’s:
2022-02 [Mini Lexer Gouge – 4 mm]
Overall Length: 7" (17,8 cm)
Gouge Width: 4 mm
2022-03 [Mini Lexer Gouge – 6 mm]
Overall Length: 7" (17,8 cm)
Gouge Width: 6 mm
2022-04 [Mini Lexer Gouge – 10 mm]
Overall Length: 7" (17,8 cm)
Gouge Width: 10 mm
|
|
|
Modular Impactor Set
Makes multiple impactor heads easily visible and available
|
|
|
|
|
|
|
 |
Designed to have available to the operating surgeon multiple types of impactors utilizing one handle. The rack uses less space and allows the surgeon to quickly see the designs available. The impactors are supplied with stainless steel tips for bone and delrin tips which can be used against an implant for slight placement adjustments.
Product No's:
5370 [Complete Set]
Included In Set / Also Available Individually:
5370-01 [Rectangular Impactor Steel Tip 11 mm x 4 mm]
5370-02 [Oval Impactor Steel Tip 13 mm x 8 mm]
5370-03 [Crescent Impactor Steel Tip 12 mm x 5 mm]
5370-04 [Square Impactor Steel Tip 9 mm x 9 mm]
5370-05 [Round Impactor Steel Tip 15 mm]
5370-06 [Round Impactor Steel Tip 12 mm]
5370-07 [Round Impactor Steel Tip 9 mm]
5370-19 [Impactor Set Base]
Base Diameter: 3.5" (8,9 cm)
5370-D1 [Rectangular Impactor Delrin Tip 11 mm 4 mm]
5370-D2 [Oval Impactor Delrin Tip 13 mm x 8 mm]
5370-D3 [Crescent Impactor Delrin Tip 12 mm x 5 mm]
5370-H [Modular Impactor Handle]
Overall Handle Length: 8" (20,3 cm)
Grip Length: 4.5" (11,4 cm)
|
|
|
Ortho Impactors
|
|
|
|
|
|
|
|
Product No's:
5331 [11 x 4 mm Rectangle]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm
5332 [12 x 7 mm Rectangle]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm
5333 [12 mm Tapered]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm
5334 [9 mm Square]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm
5335 [15 mm Round]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm
5336 [12 mm Round]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm
5337 [9 mm Round]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm
|
|
|
Ortho Mallets
Designed with a larger diameter and longer handle for a better grip—helps to exert force on osteotomes, chisels, gauges and other instruments |
|
|
|
|
|
|
|
Product No's:
7811 [Standard with Flat Sides]
Overall Length: 7.75" (19,7 cm)
Handle Length: 4.812 (12,2 cm)
Head Diameter: 1.5" (3,8 cm)
Head Weight: 2.25 lb. (1.02 kg)
7812 [Standard]
Overall Length: 7.75" (19,7 cm)
Handle Length: 4.812 (12,2 cm)
Head Diameter: 1.5" (3,8 cm)
Head Weight: 2.5 lb. (1.13 kg)
|
|
|
Ortho Mallets with Easy Grip Handles
Designed to exert force on osteotomes, chisels, gouges and other instruments
|
|
|
|
Cloward-style designed by J. Stiehl, MD
|
|
|
|
|
These solid stainless steel mallets
each have a comfortable 4-1/2" grip
made of a textured silicone that helps
prevent the surgeon’s gloved hand from
slipping and helps maintain a solid grip.
Product No's:
7810 [Small]
Overall Length: 8" (20,3 cm)
Handle Length: 4.5" (11,4 cm)
Head Weight: 1 lb. (.45 kg)
Head Diameter: 1.3125" (3,3 cm)
7815 [Large]
Overall Length: 8" (20,3 cm)
Handle Length: 4.5" (11,4 cm)
Head Weight: 1.75 lb. (.8 kg)
Head Diameter: 1.5" (3,8 cm)
|
|
|
Ortho Suction Tube
Very effective for suction and minor retracting
|
|
|
|
Designed by T. Eickmann, MD
|
|
|
|
|
Helps eliminate plugging due to bone, cement fragments, blood clots, etc.
Product No: 5465
Overall Length: 9.25" (23,5 cm)
End Hole Diameter: 1 mm
Side Hole Diameter: 1.5 mm
|
|
|
Periosteal Elevator
Designed for better control
|
|
|
|
|
|
|
|
|
Designed with sharper sides for ease of elevating and stripping. The handle is designed for better control.
Product No’s:
3450 [Angled Shaft with Straight Blade End]
Overall Length: 7.75" (19,7 cm)
Handle Length: 4.5" (11,4 cm)
Blade Size: 19 x 14 mm
3455 [Straight Shaft with Rounded Blade End]
Overall Length: 7.5" (19,1 cm)
Handle Length: 4.5" (11,4 cm)
Blade Size: 16 x 13 mm
|
|
|
Pin Inserter/Extractor
Helps brovide better leverage, stability and control when inserting/extracting pins
|
|
|
|
|
|
|
|
|
The Pin Inserter/Extractor is completely cannulated. When used on long pins the instrument can be next to the bone or skin for stability and control. The grasping end is contoured to not block the surgeon's field of view. The handle is shaped so not to slide in the surgeon's hand and for better leverage. May also be used to pull a drain needle from the surgical site. The design helps to protect operating personnel from the sharp tip of the needle.
The Pin Inserter slap hammer is designed to be screwed into a threaded pin inserter/extractor to help in removing pins in hard bone.
Product No's:
3020 [Inserter/Extractor for 1/8" (3.2 mm) pins]
3020-T [Inserter/Extractor for 1/8" (3.2 mm) pins, threaded to accept slap hammer]
3020-T-00 [Insterter/Extractor for 1/8" (3.2 mm) pins, with Slap Hammer and Sterilization Case]
3030 [Insterter/Extractor for 3/16" (4.8 mm) pins]
3040 [Slap Hammer] Thread: 5/16" x 18
1015 [Sterilization Case]
|
|
|
Resnick Small Bone Tamp with Oblique K-Wire Hole
Design allows for the concurrent reduction of a fracture and placement of a wire into the fracture site — especially helpful when the surgical exposure is small and tight, the fracture fragments are
small, and the reduction is demanding |
|
|
|
Designed by Charles Resnick, MD |
|
|
-
The serrated distal end of minimizes slippage on the cortical surface, does not interfere with the placement of the guidewire and allows for subsequent surgeon-decided, intraoperative angulation of the wiring once the first cortex is drilled
-
Especially useful in fractures where there is involvement of an articular surface, for example, mallet fractures of the distal phalanx, articular fractures that involve ligamentous attachments or tendon attachments of the phalanges, scaphoid pole small fracture fragments or other small carpal fractures, and radial styloid fractures
|
|
Product No's
5294 [For 1,1 mm (.045") K-wire]
Wire Hole for: 1,1 mm (.045") K-wire
Overall Length: 7.5" (19,1 cm)
Shaft Diameter: 6,3 mm
End Diameter: 2,5 mm
5294-01 [For 1,6 mm (.062") K-wire]
Wire Hole for: 1,6 mm (.062") K-wire
Overall Length: 7.5" (19,1 cm)
Shaft Diameter: 6,3 mm
End Diameter: 2,5 mm
|
|
|
Sandman Curved Bone Punch
Designed to help elevate a depressed tibial plateau fracture |
|
|
|
Designed by Geoffrey A. Sandman, MD |
|
|
|
Product No: 5305
Overall Length: 14" (35,6 cm)
Shaft Length: 9.5" (24,1 cm)
Impactor Diameter: 12,5 mm (.5")
|
|
|
Sarraf Fracture Reduction Thimble
Helps to hold bone fragments in place during fixation |
|
|
|
Designed by Khaled M. Sarraf, MD |
|
|
|
Provides the surgeon with an instrument for maintaining a fracture fragment in the appropriately reduced position during application of K-wires. Helpful in osteoperotic bone that is not amiable to forced reduction using reduction clamps. The wire guides help to aim the K-wire, with three positions for choice of optimal placement and for parallel wire placement. The pointed tips at the end of the thimble help to reduce the chance of slippage while maintaining a fracture reduction.
Product No's:
2290 [22 mm]
Overall Length: 1.185" (3 cm)
Guides Accept K-wires Up To: .078" (2 mm)
2291 [26 mm]
Overall Length: 1.185" (3 cm)
Guides Accept K-wires Up To: .078" (2 mm)
|
|
|
Shouldered Pin Retractors
Useful in fracture and reconstructive cases
|
|
|
|
Designed by M. Jake Hamer, MD |
|
|
|
Can be used for opening wedge osteotomies, obtaining length or distraction to correct a foreshortened malunion, or in trauma cases (calcaneus fractures, tibial plateau fractures, pilon fractures). With three different length shouldered pins, the retractor can be set at different depths to provide the necessary retraction and/or distraction. Can be used with any compressor and/or distractor that can accept 1/8" (3.2 mm) pins.
Product No's:
SOLD IN PAIRS
4694-01 [Long]
Overall Length: 67 mm
End-to-shoulder: 22 mm
Pad: 13 mm x 15 mm
4694-02 [Medium]
Overall Length: 67 mm
End-to-shoulder: 31 mm
Pad: 13 mm x 15 mm
4694-03 [Short]
Overall Length: 67 mm
End-to-shoulder: 40 mm
Pad: 13 mm x 15 mm
|
|
|
Small Cannulated Ball Spike
Designed to help reduce a bone fragment and keep it reduced, while the cannulation allows placement of a k-wire (up to 1.6 mm/.062") into the fragments |
|
|
|
Designed by Benjamin C. Taylor, MD |
|
|
|
Helps to prevent slipping while inserting k-wires. Can also serve as a handle for k-wire joysticks.
Product No: 8092
Overall Length: 4.5" (11,4 cm)
Handle Length: 3" (7,6 cm)
Ball Diameter: .275" (7 mm)
|
|
|
Soft Impact Mallets with Easy Grip Handles
Provides shock absorbing force
|
|
|
|
|
|
|
|
Designed to have a shock-absorbing force, providing less bounce or wasted force. The mallet is filled with a shock-absorbing media and has a flat striking surface to keep the mallet centered on an instrument.
The comfortable Easy Grip handle is made of a textured silicone that helps prevent the surgeon’s gloved hand from slipping and helps maintain a solid grip. The bottom can also be used to tap an implant in place.
The mallet with delrin head features a replaceable delrin head.
Product No’s.:
7820 [2 lbs. / .907 kg]
Overall Length: 10.5" (26,7 cm)
Handle Length: 5" (12,7 cm)
Head Width: 3.5" (8,9 cm)
Head Diameter: 1.375" (3,5 cm)
7832 [2 lbs. / .907 kg with Replaceable Delrin Head]
Overall Length: 10.5" (26,7 cm)
Handle Length: 5" (12,7 cm)
Head Width: 3.5" (8,9 cm)
Head Diameter: 1.375" (3,5 cm)
7837 [3 lbs. / 1,36 kg]
Overall Length: 11" (27,9 cm)
Handle Length: 5" (12,7 cm)
Head Width: 3.5" (8,9 cm)
Head Diameter: 1.875" (4,8 cm)
Delrin Head Replacements for 7832:
7832-HEAD01 [.5" Stud] Single
7832-HEAD02 [.5" Stud] 3-Pack
7832-HEAD03 [.875" Stud] Single
7832-HEAD04 [.875" Stud] 3-Pack
 |
|
|
Soft Impact Mallet with Weidman Silicone Handle |
|
|
|
Handle designed by Kevin Weidman, MD |
|
|
|
Product No: 7821 [2 lbs. (.907 kg)]
Overall Length: 10.625" (27 cm)
Grip Length: 5.5" (14 cm)
Head Width: 3.5" (8,9 cm)
Head Diameter: 1.375" (3,5 cm)
|
|
|
Stanton Nail/Screw Drill Guide Assembly
for Distal Humeral, Femoral, or Tibial Screws
Designed to help hold and stabilize a drill guide, allowing the surgeon to obtain 'perfect circles' and drill distal locking screw holes without exposure of the hand to the x-ray beam |
|
|
|
Designed by John L. Stanton, MD |
|
|
|
The drill guide unit (sleeve/trocar) is placed over the side of the bone through an incision. The locking holder is attached to the guide and rested against the skin for stability. With the x-ray on, the guide unit is adjusted by moving the holder until the trocar lines up with a hole in the rod. The trocar is removed and a drill bit is then inserted into the guide.
Product No’s:
8986-00 [Assembly Set]
Set includes: (1) Holder, (1) Sleeve, and (1) Trocar
Also available individually:
8986-01 [Drill Guide Sleeve]
Overall Length: 3.85" (9,8 cm)
Outside Diameter: 7 mm
8986-02 [Drill Guide Trocar Alignment Tool]
Overall Length: 4.375" (11,1 cm)
Trocar Diameter: 5 mm
8987 [Locking Drill Guide Holder]
Overall Length: 10.5" (26,7 cm)
Guide Height: 21 mm
Closed Guide Internal Diameter: 5,5 mm
|
|
|
Stoll Retractor/Wire Guide
Retractor/guide designed for aiming guide wire when performing femoral nailing (TFN for an intertrochanteric fracture), or
tibial nailing using the parapatellar approach |
|
|
|
Designed by Jordan Stoll, MD |
|
|
|
Product No: 8012
Overall Length: 12" (30,5 cm)
Blade Width: .71" (1,8 cm)
Prong Length: 6 mm
Guide Hole Diameter: 4,5 mm
|
|
|
Sumko Surgical Finger Guide
Used to help insert a 3.2 mm guide wire, especially during hip fracture surgery, to help prevent puncturing the surgeons’ glove |
|
|
|
Designed by Michael H. Sumko, MD |
|
|
|
The entry point for a trochanteric nail can be located through a smaller incision with this device, with reduced risk of penetrating the surgeon’s glove while finding the starting point for the guide wire.
Product No: 8991
Overall Length: 4" (10,2 cm)
US Patent #503638945
|
|
|
T-Handle with A0-End |
|
|
|
|
|
|
|
Product No: 2022-T
Overall Length: 5.9" (15 cm)
Handle Width: 3.15" (8 cm)
|
|
|
Universal Bone Grafting/Impacting Forceps
Bone graft can be grasped, placed and impacted without changing hands or instruments
|
|
|
|
Designed by J.A. Amis, MD
|
|
|
The forceps are designed with grasping ends for delivery of bone graft. When the graft is in place, the forceps are closed, which forms the ends into an impacting punch. A striking platform is attached to the end of the forceps for tapping and tamping the graft. Four end diameters are available in two lengths.
|
 Product No’s:
6" (15,2 cm) Length
5010-01 [1/8" (3,2 mm) Diameter End]
5010-02 [3/16" (4,8 mm Diameter End]
5010-03 [1/4" (6,3 mm) Diameter End]
5010-04 [5/16" (8 mm) Diameter End]
10" (25,4 cm) Length
5050-01 [1/8" (3,2 mm) Diameter End]
5050-02 [3/16" (4,8 mm Diameter End]
5050-03 [1/4" (6,3 mm) Diameter End]
5050-04 [5/16" (8 mm) Diameter End]
|
|
|
Universal Screwdriver Set
Helps eliminate the opening of multiple sterile packs when a specific size or style of screwdriver is needed
|
|
|
|
|
|
|
|
Helpful during revision total joint surgery where screws have been used, removal of bone plates, fracture fixation screws or bone graft screws. Set consists of: 7 (seven) double ended screwdriver bits — small & large single slot, cross & cruciate, 3.5 mm & 4.5 mm hex, small & large phillips, small, medium, & large star — a handle which accommodates any of the above bits, and a sterilization case.
Product No's: 5195 [Complete Set with Case]
Also available individually:
5195-01 [Handle]
5195-02 [Straight (single slot) – Lg & Sm]
Large: 7 x 1.5 mm, Small: 5 x 1 mm
5195-03 [Cross/Cruciate]
Large: 7 mm, Small: 6 mm
5195-04 [Hex]
Large: 4.5 mm, Small: 3.5 mm
5195-05 [Phillips]
Large: 4 mm, Small: 3.5 mm
5195-08 [Small Star: #6 & #8]
5195-06 [Medium Star: #10 & #15]
5195-07 [Large Star: #20 & #25]
|
|
|
Vaughan Endzone Retractor
Designed for use when placing the end screws while plating a fracture using a minimally invasive technique |
|
|
|
Designed by Roderick Vaughan, MD |
|
|
|
 The “U”-shaped wall design helps allow the maximal exposure along the length, or "endzone", of an incision while maintaining adequate width and retraction along the sides of the exposure.
Product No: 1766
Overall Length: 8.75" (22,2 cm)
Deep Depth: 45 mm
Deep Internal Width: 14 mm
Shallow Depth: 25 mm
Shallow Internal Width: 12 mm
|
|
|
Wagner Osteotome Handle
Handle is designed for easier gripping, rotational control, and use with a mallet with a standard 1/4” Lambotte osteotome |
|
|
|
Designed by Russell Wagner, MD |
|
|
|
Product No's
5348 [Handle Only]
Overall Length: 5.5" (14 cm)
5348-01 [1/4" Osteotome Only]
Overall Length: 8.875" (22,5 cm)
|
|
|
Wixted Fracture Distractor
Designed to provide opposing leverage to help bring the fibula (or other bone) back out to its proper length after it has been shortened by a fracture |
|
|
|
Designed by John J. Wixted, MD |
|
|
|
A 3.5 mm screw is temporarily placed above a plate, providing a source of leverage for the screw holding end of the distracter. The curved peg-shaped tip is then placed into a hole in the bone plate, and the distracter is activated to bring the bone back to its proper length before fixation.
Product No: 1882
Overall Length: 7" (17,8 cm)
|
|
|
Wubben Guide Rod Pusher
Used to help hold the guide rod in place during a intramedulllary nailing of a long bone
|
|
|
|
Designed by Robert Wubben, MD
|
|
|
The surgeon can use the concave end of handle initially to hold the guide rod in place. As the reamer is retracted to the end of the guide rod, the shaft of the Pusher is used by inserting down the center hole of the drill, pushing on the guide and keeping it in the bone.
|
Product No: 5985
Overall Length: 9" (22,9 cm)
Handle Length: 4.75" (12 cm)
Handle End Dia.: 10 mm
Rod End Dia.: 3.2 mm
|
|
|
© 2023 Innomed, Inc. All rights reserved.
|
