CupX – Acetabular Cup Extraction System
Cement Osteotome
Curved Osteotome for Total Knee Revision
Eickmann Knee Revision Set
CupX – Acetabular Cup Extraction System
Curved Cement Osteotome
Curved Osteotome for Total Knee Revision
Eickmann Knee Revision Set
Flexible Osteotome System
Foster Cement Osteotome
Garneti Concave Hip/Knee Revision Osteotome
Garneti Hip Cup Revision Osteotome Set
Incavo Tibia Component Revision Osteotomes
Flexible Osteotome System
Foster Cement Osteotome
NEW! Garneti Concave Hip/Knee Revision Osteotome
NEW! Garneti Hip Cup Revision Osteotome Set
Incavo Tibia Component Revision Osteotomes
Kudrna Cup Channel Chisel
Lachiewicz Total Knee Revision Set
Lambotte Osteotomes with Handle
Large Bone Curettes
Mini-lexer Osteotomes
Kudrna Cup Channel Chisel
Lachiewicz Total Knee
Revision Set
Lambotte Osteotomes
with Handle
Large Bone Curettes
Mini-lexer Osteotomes
Modified Lambotte Cup Removal Osteotomes
Modified Lambotte Osteotomes
Modified Smith-Peterson Style Osteotomes
Mueller-Type Cement Removal Instruments
Ring Curettes
Modified Lambotte Cup Removal Osteotomes
Modified Lambotte Osteotomes
Modified Smith-Peterson
Style Osteotomes
Mueller-Type Cement
Removal Instruments
Ring Curettes
Sarraf Cement Trimmer
Wagner Osteotome Handle
Whang Tibial Osteotome
Robb Cement Curette
Sarraf Cement Trimmer
Sarraf Spearhead Cement Exciser
Wagner Osteotome Handle

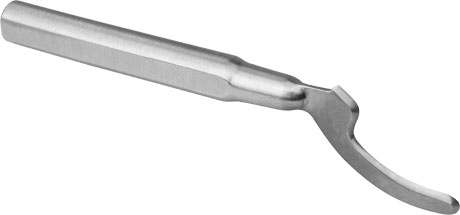

Whang Tibial Osteotome
Whelan Flexible Chisel Guide
Whelan Curved Chisel Guide


Whelan Flexible Chisel Guide
Whelan Curved Chisel Guide





CupX — Acetabular Cup Extraction System

Helps to quickly and precisely remove an acetabular cup
with minimal loss of bone


System designed by
James Kudrna, MD &
Stephen Incavo, MD
Wrench Drive Handle designed by
Guido Grappiolo, MD
Large Delrin Heads designed by
Adolph Lombardi, MD


CupX — Acetabular Cup Extraction System



Product No's:

Complete Instrument Set

5200 [Complete Set — Fixed Handle]
5208 [Complete Set — Wrench Drive Handle]
20 Starter and 20 Finish Instruments, 3 each of 5 Head sizes (22-36 mm), and 5 cases
Includes complete set of 5200-T CupX Blade Contour Checking Templates, plus Ring


CupX — Acetabular Cup Extraction System

Custom and Ranged Instrument Sets

5200-01 [Choice of Sizes — Fixed Handle]
5208-01 [Choice of Sizes — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (choice of sizes) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for corresponding Blade Sizes Chosen, plus Ring


5200-02 [42 mm–50 mm — Fixed Handle]
5208-02 [42 mm–50 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (42 mm–50 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 42 mm – 50 mm Blades, plus Ring


5200-03 [52 mm–60 mm — Fixed Handle]
5208-03 [52 mm–60 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (52 mm–60 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 52 mm – 60 mm Blades, plus Ring


5200-04 [62 mm–70 mm — Fixed Handle]
5208-04 [62 mm–70 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (62 mm–70 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 62 mm – 70 mm Blades, plus Ring


5200-05 [72 mm–80 mm — Fixed Handle]
5208-05 [72 mm–80 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (72 mm–80 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 72 mm – 80 mm Blades, plus Ring

CupX — Acetabular Cup Extraction System


Individual FIXED HANDLE
Cup Removal Instruments

STARTER BLADE

5200-42 [42 mm]
5200-44 [44 mm]
5200-46 [46 mm]
5200-48 [48 mm]
5200-50 [50 mm]
5200-52 [52 mm]
5200-54 [54 mm]
5200-56 [56 mm]
5200-58 [58 mm]
5200-60 [60 mm]
5200-62 [62 mm]
5200-64 [64 mm]
5200-66 [66 mm]
5200-68 [68 mm]
5200-70 [70 mm]
5200-72 [72 mm]
5200-74 [74 mm]
5200-76 [76 mm]
5200-78 [78 mm]
5200-80 [80 mm]

FINISH BLADE

5201-42 [42 mm]
5201-44 [44 mm]
5201-46 [46 mm]
5201-48 [48 mm]
5201-50 [50 mm]
5201-52 [52 mm]
5201-54 [54 mm]
5201-56 [56 mm]
5201-58 [58 mm]
5201-60 [60 mm]
5201-62 [62 mm]
5201-64 [64 mm]
5201-66 [66 mm]
5201-68 [68 mm]
5201-70 [70 mm]
5201-72 [72 mm]
5201-74 [74 mm]
5201-76 [76 mm]
5201-78 [78 mm]
5201-80 [80 mm]


Steel Interchangeable Heads

5202-22 [22 mm]
5202-26 [26 mm]
5202-28 [28 mm]
5202-32 [32 mm]
5202-36 [36 mm]

Optional:

5202-38 [38 mm]

Storage Case for Starter and Finish Blades and 5 Steel Heads

9015

Storage Case for 10 Steel Heads

9016

Individual WRENCH DRIVE HANDLE
Cup Removal Instruments

STARTER BLADE

5208-42 [42 mm]
5208-44 [44 mm]
5208-46 [46 mm]
5208-48 [48 mm]
5208-50 [50 mm]
5208-52 [52 mm]
5208-54 [54 mm]
5208-56 [56 mm]
5208-58 [58 mm]
5208-60 [60 mm]
5208-62 [62 mm]
5208-64 [64 mm]
5208-66 [66 mm]
5208-68 [68 mm]
5208-70 [70 mm]
5208-72 [72 mm]
5208-74 [74 mm]
5208-76 [76 mm]
5208-78 [78 mm]
5208-80 [80 mm]

FINISH BLADE

5209-42 [42 mm]
5209-44 [44 mm]
5209-46 [46 mm]
5209-48 [48 mm]
5209-50 [50 mm]
5209-52 [52 mm]
5209-54 [54 mm]
5209-56 [56 mm]
5209-58 [58 mm]
5209-60 [60 mm]
5209-62 [62 mm]
5209-64 [64 mm]
5209-66 [66 mm]
5209-68 [68 mm]
5209-70 [70 mm]
5209-72 [72 mm]
5209-74 [74 mm]
5209-76 [76 mm]
5209-78 [78 mm]
5209-80 [80 mm]


Optional:
Large Delrin Interchangeable Heads

US Patent #7,998,146 B2
5202-00 [Complete Set with Case]
5202-39 [39 mm]
5202-40 [40 mm]
5202-41 [41 mm]
5202-42 [42 mm]
5202-43 [43 mm]
5202-44 [44 mm]
5202-45 [45 mm]
5202-46 [46 mm]
5202-47 [47 mm]
5202-48 [48 mm]
5202-49 [49 mm]
5202-50 [50 mm]
5202-51 [51 mm]
5202-52 [52 mm]
5202-53 [53 mm]
5202-54 [54 mm]
5202-55 [55 mm]
5202-56 [56 mm]
5202-57 [57 mm]
5202-58 [58 mm]
5202-59 [59 mm]
5202-60 [60 mm]
9014 [Case Only]
Any component may be purchased individually.



CupX Customer Blade Discount Program

Click the link below to download (in PDF format) an explanation of our
Blade Discount Program for the CupX System.

CupX Blade Discount Program


CupX Customer Blade Discount Form

Click the link below to download (in PDF format) our Blade Exchange Form for the CupX System.

CupX Blade Discount Form

CupX — Acetabular Cup Extraction System

All blades now come standard with an ultra hard titanium nitride coating which offers these benefits:

Extends Blade Life…
by increasing surface hardness

Prolongs Sharpness…
with an ultra hard, heat resistant coating

More Wear Resistant…
due to high lubricity of titanium nitride coating

Prevents Galling…
won’t chip, peel, or flake

Reduces Friction…
eliminates seizing in metal-on-metal contact

Chemical and Corrosion Resistant

Non-toxic…
medically approved and proven

Extended blade life leads to
long term savings!



The CupX Complete Instrument Set consists of 20 (twenty) pairs of extractors with fixed, sharp curved blades — one short starter blade and one long finishing blade — in diameters ranging from 42 to 80 mm in 2mm increments, plus 15 interchangeable spherical steel heads (3 each of five sizes) with diameters of 22, 26, 28, 32 and 36 mm.


System Options Include:

Choice of Handle Styles: Fixed or Wrench Drive
Wrench Drive handles work like a socket wrench, allowing improved torque without changing positions.

CupX — Acetabular Cup Extraction System

Large 38 mm Steel Head Size
A larger, non-standard size.

CupX — Acetabular Cup Extraction System

Large Delrin Interchangeable Heads*
Designed to provide tight, secure surface contact when removing larger size acetabular cups, and can also be used if the cup liner of a standard size cup is worn and must be removed. Available in diameters from 39 to 60 mm in 1 mm increments.
* Patent #7,998,146 B2


CupX — Acetabular Cup Extraction System


Other System Features & Information:

Fully Customizable Sets
Rent or purchase — configure with as few or as many options required. See below for rental details.

Non-modular Blade System
Helps to decrease costs while increasing surgical efficiency as blades don’t need to be changed interoperatively.

Starter Blades
The shorter, stiffer Starter Blades are used around the top rim of the cup for more dense bone.

Finish Blades
The longer, thinner Finish Blades are used for deeper cutting around the dome of the cup.

In-line Shaft Alignment
The shaft is aligned directly over the head, which helps prevent the head from riding out of the cup while keeping the instrument properly centered. With proper centering, the curvature of the blades will more closely match the hemispherically-shaped outer surface of the acetabular cup when rotating, thus minimizing bone loss and creating a relatively intact acetabular recess for fitting of a new cup.

Head Diameters from 22 mm-60 mm
A properly sized head is installed onto the end of the shaft, and is then seated into the acetabular cup liner. The handle may then be pivoted and/or rotated to make an orbital cut around the acetabular cup. Note: If the cup liner is damaged or offset, proper centering of the shaft may not be possible. Remove the liner and install a temporary insert, or utilize one of our larger Delrin Heads if available.

Blade Diameters from 42 mm–80 mm
The curvature of the blades closely matches the outer surface of the acetabular cup, and will remain a fixed distance from the center of the acetabulum when rotating, thus creating a relatively intact acetabular recess for fitting of a new cup.

Shaft-End Handle Placement
Handle placement near the end of the shaft allows for better leverage and easier rotation.

Shaft-End Impaction Platform
A mallet may be used to strike the impaction platform on the end of the shaft to drive in the blade.

System Rental Information:
Available on a single procedure basis

Details – several rental configurations available:
• 4 cases with all sizes, including 2 sets of heads
• 3 cases, including 2 sets of heads
• 2 cases, including 2 sets of heads
• 1 case, including 2 sets of heads
• 1 size (starter & finish), including 2 sets of heads
Each case includes 5 Starter and 5 Finish Instruments


Charges
In addition to a rental fee, there is a charge for each instrument used (not including heads). Also, an additional charge applies if the used instruments are kept instead of returned. Rental is for one surgical procedure only, and must be returned within 5 days following the procedure.

TOP



CupX Blade Contour Checking Templates

Designed for checking the contour of a CupX blade after use to evaluate arc accuracy






CupX Blade Contour Checking Templates

Individual Contour Template
Product No’s:
5200-T [Complete Set]

Also available Individually:
5200-42G [42 mm]
5200-44G [44 mm]
5200-46G [46 mm]
5200-48G [48 mm]
5200-50G [50 mm]
5200-52G [52 mm]
5200-54G [54 mm]
5200-56G [56 mm]
5200-58G [58 mm]
5200-60G [60 mm]
5200-62G [62 mm]
5200-64G [64 mm]
5200-66G [66 mm]
5200-68G [68 mm]
5200-70G [70 mm]
5200-72G [72 mm]
5200-74G [74 mm]
5200-76G [76 mm]
5200-78G [78 mm]
5200-80G [80 mm]
5200-GR [Ring]
Download Product Brochure (PDF)

TOP





Curved Cement Osteotome

Helps remove cement around the back of the tibia base, and is useful in the femoral notch during removal of a knee femoral component




Curved Cement OsteotomeCurved Cement Osteotome

Designed to be inserted around the back of the tibia base to remove cement. The curve is congruent with most tibia bases. During revision knee surgery, can be used to help separate the prosthesis/bone or prosthesis/cement interface. The curve of the osteotome allows it to be used in the femoral notch of a femoral component. The osteotome is nitrate coated to help protect the implant surface.

Product No: 5220
Overall Length: 6.75" (17,1 cm)
Handle Length: 3" (7,6 cm)
Blade Width: 6,8 mm
Download Product Brochure (PDF)

TOP





Curved Osteotome for Total Knee Revision

Designed to help in the removal of a tibial component,
the curved blade is designed to make contact from multiple angles


Designed by Morteza Meftah, MD


Curved Osteotome for Total Knee Revision

Curved Osteotome for Total Knee RevisionCurved Osteotome for Total Knee Revision

Curved Osteotome for Total Knee Revision

Product No's:

3622 [Standard]
Overall Length: 11" (27,9 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 12 mm
Blade Thickness: 2 mm

3622-01 [Small]
Overall Length: 8" (20,3 cm)
Handle Length: 4.5" (11,4 cm)
Blade Width: 12 mm
Blade Thickness: 2 mm



Download Product Brochure (PDF)


TOP





Eickmann Knee Revision Set

Used for total knee revision


Designed by Thomas Eickmann, MD


Eickmann Knee Revision Set

Product No's:

5470-00 [Complete Set]

Individual Instruments:

5470-08 [8 mm Chisel]
Osteotome Width: 8 mm
Blade Length: 2.375" (6 cm)
Overall Length: 7.375" (18,7 cm)

5470-11 [11 mm Chisel]
Osteotome Width: 11 mm
Blade Length: 2.375" (6 cm)
Overall Length: 7.375" (18,7 cm)

5470-20 [20 mm Chisel]
Osteotome Width: 20 mm
Blade Length: 2.375" (6 cm)
Overall Length: 7.375" (18,7 cm)

Eickmann Knee Revision Set


5472-08 [8 mm Offset Cement Removal Chisel]
Osteotome Dimensions: 8 mm Wide x 12 mm Long
Blade Length: 2.375" (6 cm)
Overall Length: 7.375" (18,7 cm)

5474-06 [6 mm Notched Cement Removal Chisel]
Osteotome Width: 6 mm
Blade Length: 2.625" (6 cm)
Overall Length: 7.375" (18,7 cm)

5475-08 [8 mm Implant Remover]
Diameter: 8 mm
Blade Length: 2.625" (6 cm)
Overall Length: 7.375" (18,7 cm)

5470-CASE [Case Only]

Eickmann Knee Revision Set

Download Product Brochure (PDF)

TOP





Flexible Osteotome System

Provides various osteotome blades for both hip and knee surgery




Flexible Osteotome System


Sharp, flexible blades are well suited for loosening implants from cement or bony ingrowth fixation.

Various blade widths and profiles allow great flexibility to follow the implant contours.

Modular handle is made of high impact surgical stainless steel and has a quick-coupling positive locking mechanism for ease of use and quick blade changes.

Slap hammer threads into the handle and is designed to facilitate blade removal.

System includes choice of handle style.


Product No’s:

S0011-00 [Set with Quick-Coupling Handle and Case]

S0012-00 [Set with Locking Nut Handle and Case]



Individual Instruments Included in Sets:

S1002 Thin Osteotome Blade
           2.5" (6,3 cm) x 8 mm

S1003 Thin Osteotome Blade
           2.5" (6,3 cm) x 10 mm

S1004 Thin Osteotome Blade
           2.5" (6,3 cm) x 12 mm

S1005 Thin Osteotome Blade
           2.5" (6,3 cm) x 20 mm

S1006 Curved Thin Osteotome Blade
          2.5" (6,3 cm) x 12 mm

S1007 Curved Thin Osteotome Blade
          5" (12,7 cm) x 20 mm

S1008 Thin Osteotome Blade
           5" (12,7 cm) x 10 mm

S1009 Thin Osteotome Blade
           5" (12,7 cm) x 8 mm

S1020 Handle with Quick-Coupling End
           5" (12,7 cm)
           – OR –
S1021 Handle with Locking Nut
          6" (15,2 cm)

S1133 Radial Osteotome
           5" (12,7 cm) x 10 mm

S1120 Radial Osteotome
           5" (12,7 cm) x 12 mm

S1134 Radial Osteotome
           5" (12,7 cm) x 14 mm

S1121 Radial Osteotome
           5" (12,7 cm) x 16 mm

S1122 Radial Osteotome
           5" (12,7 cm) x 20 mm

S2007 Small Slap Hammer
           12" (30,5 cm)

9018 Case






Optional Blades for Flexible Osteotome System




Optional Strike Plate can be attached to the Handle for direct striking with a mallet.

Optional Curved Chisel Blades are designed to help loosen the cement/prosthesis interval in TKA tibial tray and femoral component revisions. The curved design is useful in working around pegs & fins to get posterior cement access. Also helpful with removal of other implants, i.e shoulder, ankle, etc.




OPTIONAL BLADES:
NOT INCLUDED IN SET

S1020-SP Strike Plate for Handle
           Diameter 1.625" (4,1 cm)

S1123 7.5" Extra Long Osteotome Blade
          7.5" (19,1 cm) x 8 mm

S1135 Radial Osteotome Medial Curve
           6.75" (17,1 cm) x 11 mm

S1136 Radial Osteotome Lateral Curve
           6.75" (17,1 cm) x 11 mm

S1137 Radial Osteotome Medial Curve
           5" (12,7 cm) x 11 mm

S1138 Radial Osteotome Lateral Curve
           5" (12,7 cm) x 11 mm

S1233-L 2" Flexible Left Curved Chisel
          2" (5,1 cm) x 8 mm

S1233-R 2" Flexible Right Curved Chisel
           2" (5,1 cm) x 8 mm

S1222 2.5" Chisel Blade
           2.5" (6,4 cm) x 8 mm

S1223 2.5" Chisel Blade
           2.5" (6,4 cm) x 10 mm

S1224 2.5" Chisel Blade
           2.5" (6,4 cm) x 12 mm

S1225 2.5" Chisel Blade
           2.5" (6,4 cm) x 20 mm

S1229 5" Chisel Blade
           5" (12,7 cm) x 8 mm

S1228 5" Chisel Blade
           5" (12,7 cm) x 10 mm

S1231 5" Chisel Blade
           5" (12,7 cm) x 12 mm

S1230 5" Chisel Blade
           5" (12,7 cm) x 20 mm

S1227 5.5" Long Chisel Blade
           5.5" (12,7 cm) x 8 mm

S1232 7.5" Extra Long Chisel Blade
          7.5" (19,1 cm) x 8 mm

S1234 8.5" Extra Long Chisel Blade
          8.5" (21,6 cm) x 8 mm

S1235 9.5" Extra Long Chisel Blade
          9.5" (24,1 cm) x 8 mm

S1236 10.5" Extra Long Chisel Blade
          10.5" (26,7 cm) x 8 mm


S1237 11.5" Extra Long Chisel Blade
          11.5" (29,2 cm) x 8 mm


S1238 12.5" Extra Long Chisel Blade
          12.5" (31,8 cm) x 8 mm


Download Product Brochure (PDF)

TOP





Foster Cement Osteotome

Designed to help remove a UKA/TKA component


Designed by Scott A. Foster, MD



Foster Cement Osteotome

Features a large handle and striking platform. The ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.

Foster Cement Osteotome

Product No: 5232
Osteotome Width: 6.7 mm
Overall Length: 8.5" (21,6 cm)
Handle Length: 5.75" (14,6 cm)
Download Product Brochure (PDF)

TOP





Garneti Concave Hip/Knee Revision Osteotome

Designed for use in primary and revision knee surgery.


Designed by Mr Naren Garneti MSc (Tr) MRCS MCh (Orth) FRCS (Tr & Orth)




Garneti Hip Cup Revision Osteotome Set

Garneti Hip Cup Revision Osteotome Set

During revision knee surgery, can be used to help disrupt the bone-implant, cement-bone and cement-implant interfaces. The osteotome can also be used to help extract the tibial and femoral components.

During primary knee surgery, can be used to help remove cement from the periphery of a tibial base plate and femoral component.

Product No: 5275-03
Overall Length: 11.1" (28,2 cm)
Blade Width: .7" (1,8 cm)
Strike Plate End Diameter: 1.25" (3,2 cm)



Download Product Brochure (PDF)

TOP





Garneti Hip Cup Revision Osteotome Set

Designed to help extract a well-fixed cementless porous acetabular component


Designed by Mr Naren Garneti MSc (Tr) MRCS MCh (Orth) FRCS (Tr & Orth)




Garneti Hip Cup Revision Osteotome Set

Garneti Hip Cup Revision Osteotome Set

Technique can be used without extracting the liner. Helps to preserve bone stock.

LINK – SURGICAL TECHNIQUE ARTICLE:

https://scholars.direct/Articles/orthopedic-surgery/jost-4-055.php?jid=orthopedic-surgery

Product No's:

5275-00 [Set of One Each]

Individual/Replacement Parts:

5275-01 [Garneti Curved Hip Cup Revision Osteotome]
Overall Length: 11..4" (29 cm)
Blade Width (Maximum): .75" (1,9 cm)
Strike Plate End Diameter: 1.25" (3,2 cm)


5275-02 [Garneti Flat Hip Cup Revision Punch]
Overall Length: 11.2" (28,5 cm)
Blade Width: .865" (2,2 cm)
Strike Plate End Diameter: 1.25" (3,2 cm)


5275-03 [Garneti Concave Hip/Knee Revision Osteotome]
Overall Length: 11.1" (28,2 cm)
Blade Width: .7" (1,8 cm)
Strike Plate End Diameter: 1.25" (3,2 cm)



Download Product Brochure (PDF)

TOP





Incavo Tibia Component Revision Osteotomes

Designed to help break the posterior cement-bone interface when removing a cemented tibial TKA component


Designed by Stephen J. Incavo, MD


Incavo Tibia Component Revision OsteotomesIncavo Tibia Component Revision OsteotomesIncavo Tibia Component Revision Osteotomes

Incavo Tibia Component Revision Osteotomes

Also used to help break the posterior implant-bone interface when removing a cementless tibial TKA component.


Product No's:

3621-00 [Complete Set]

Set Includes/Available Individually:


3621-01 [Standard Osteotome]
Blade Length: 10 mm
Blade Width: 1/2" (12.7 mm)
Blade Offset: 3/4" (19.1 mm)
Overall Length: 8.5" (21,6 cm)

3621-02 [Medium Osteotome]
Blade Length: 14 mm
Blade Width: 1/2" (12.7 mm)
Blade Offset: 3/4" (19.1 mm)
Overall Length: 8.5" (21,6 cm)

3621-03 [Deep Osteotome]
Blade Length: 18 mm
Blade Width: 1/2" (12.7 mm)
Blade Offset: 3/4" (19.1 mm)
Overall Length: 8.5" (21,6 cm)

3040 [Slap Hammer]

1015 [Sterilization Case]
Download Product Brochure (PDF)

TOP





Kudrna Cup Channel Chisel

Designed to help break the bone-prosthetic interface of well-fixed non-cemented acetabular components being revised


Designed by James C. Kudrna, MD



Flexible Fiber Optic Light



Ultra hard titanium nitride coating helps to extend chisel life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.

Product No: 3686
Overall Length: 12" (30,5 cm)
Handle Length: 3.5" (8,9 cm)
Blade Width: 30 mm
Blade Depth: 15 mm
Download Product Brochure (PDF)

TOP





Lachiewicz Total Knee Revision Set

Used for total knee revision


Designed by Paul F. Lachiewicz, MD


Lachiewicz Total Knee Revision Set


Product No's:

3700-00 [Complete Set]

Individual Instruments/Available Individually:

3700-01 [Offset Edge Cutting Cement Chisel, Short] Chisel Width: 10 mm

3700-02 [Offset Edge Cutting Cement Chisel, Long] Chisel Width: 15 mm

3700-03 [Offset Femoral Component Dis-impactor]

3700-04 [8mm Cement Prosthesis Osteotome] Osteotome Width: 8 mm

3700-05 [10mm Cement Prosthesis Osteotome] Osteotome Width: 10 mm

3700-06 [13mm Cement Prosthesis Osteotome] Osteotome Width: 13 mm

3700-07 [20mm Cement Prosthesis Osteotome] Osteotome Width: 20 mm

3700-08 [V-shaped Cement Splitter]

3700-09 [One-sided Cement Splitter]

3700-10 [8mm Cement Hook]
Hook Blade Width: 8 mm

3700-11 [Cement Punch]

3700-12 [Removal Cross Bar (not shown)]
Download Product Brochure (PDF)

TOP





Lambotte Osteotomes with Handle

Designed with a handle for better control, which helps reduce rotation of the osteotome during use


Designed by John Cherf, MD


Lambotte Osetotomes with Handle

The handle also provides a larger striking area for use with a mallet. The osteotome shafts are manufactured with stainless steel and are available both straight and curved in 1/4" blade width.

Product No's:

5250-01 [1/4" Straight]
Overall Length: 14" (35,6 cm)
Handle Length: 4.5" (11,4 cm)
Blade Width: .25" (6,3 mm)

5260-01 [1/4" Curved]
Overall Length: 14" (35,6 cm)
Handle Length: 4.5" (11,4 cm)
Blade Width: .25" (6,3 mm)

Download Product Brochure (PDF)

TOP





Large Bone Curettes





Large Bone Curettes

Designed with a 5/16" diameter shaft allowing better visualization into the medullar canal during use. The contoured handle is designed to keep the curette from slipping in the surgeon's hand and for better control. Shaft length 10-1/2".

The Angled Large Curette is designed for use in the acetabulum or exposed bone. The shaft diameter is 5/16" and has a contoured handle. Shaft length 10-1/2".



Large Bone Curettes

Product No's:
5160 [Set of 1 each including Case]

Also available individually:

5160-01 [Angled Small]
Curette End: 10 mm X 18 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)

5160-02 [Straight Small]
Curette End: 10 mm X 18 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)

5160-03 [Angled Medium]
Curette End: 10 mm X 24 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)

5160-04 [Angled Large]
Curette End: 24 mm X 24 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)

5160-05 [Straight Medium]
Curette End: 10 mm X 24 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)

9007 [Storage Case Only]
Download Product Brochure (PDF)

TOP





Mini-lexer Osteotomes

Helpful in osteophyte and cement removal




Mini-lexer Osteotomes

Small, thin osteotomes helpful in osteophyte and cement removal in total joint surgery. Larger handle helps with better control.

Product No’s:

5270-01 [4mm Wide]
Blade Width: 4 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)


5270-02 [6mm Wide]
Blade Width: 6 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)


5270-03 [10mm Wide]
Blade Width: 10 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)


5270-04 [12mm Wide]
Blade Width: 12 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
Download Product Brochure (PDF)

TOP





Modified Lambotte Cup Removal Osteotomes

Designed with different hemisphere of curves to match cups of different sizes





Four osteotomes with different hemispherical radii allow the osteotomes to fit next to the outer surface of different size acetabular hip cups. The osteotomes have a handle for better control and a hammering platform.

Modified Lambotte Cup Removal Osteotomes

Modified Lambotte Cup Removal Osteotomes

Product No’s:

5240-44 [44 mm]
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12 cm)


5240-48 [48 mm]
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12 cm)


5240-52 [52 mm]
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12 cm)


5240-56 [56 mm]
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12 cm)
Download Product Brochure (PDF)

TOP





Modified Lambotte Osteotomes

Designed with a striking platform, plus a cross-bar hole to help control rotational stability and assist with removal





Modified Lambotte Osteotomes

Modified Lambotte Osteotomes

Six (6) sizes available —from 1/4” to 1-1/2” in 1/4” increments.

Cross-bar and case included in complete set.

The two smallest sizes have an 1/8" hole in which an 1/8" pin (not included) can be used as a cross bar.



Product No's:

5350-00 [Complete Set w/Case]

Also available individually:

5350-25 [1/4”]
Overall Length: 9” (22,9 cm)
Osteotome Width: .25” (6.4 mm)


5350-50 [1/2”]
Overall Length: 9” (22,9 cm)
Osteotome Width: .5” (12.7 mm)

5350-75 [3/4"]
Overall Length: 9" (22,9 cm)
Osteotome Width: .75" (19 mm)

5350-100 [1”]
Overall Length: 9” (22,9 cm)
Osteotome Width: 1” (25.4 mm)

5350-125 [1-1/4”]
Overall Length: 9” (22,9 cm)
Osteotome Width: 1.25” (31.8 mm)

5350-150 [1-1/2”]
Overall Length: 9” (22,9 cm)
Osteotome Width: 1.5” (38.1 mm)

5350-CASE [Case]
Dimensions: 12.25" x 11.25" x 1"
(31,1 x 28,6 x 2,5 cm)

5350-CB [Cross Bar]
Overall Length: 4.375" (11,1 cm)
Download Product Brochure (PDF)

TOP





Modified Smith-Peterson Style Osteotomes

Multi-arch osteotomes help in removal of total hip cups


Designed by M. Ritter, MD



Modified Smith-Peterson Style Osteotomes

Modified Smith-Peterson Style Osteotomes

Three styles of osteotomes offer a selection for removal of total hip cups. The different curvatures help to fit next to a cups outer surface. The osteotomes have a handle for better control plus a hammering platform end.

Modified Smith-Peterson Style Osteotomes

Product No’s:

5280-01 [Short]
Blade Dimensions: 20 mm x 20 mm
Overall Length: 10.875" (27,6 cm)
Handle Length: 5" (12,7 cm)


5280-02 [Medium]
Blade Dimensions: 20 mm x 35 mm
Overall Length: 11.675" (29,6 cm)
Handle Length: 5" (12,7 cm)


5280-03 [Long]
Blade Dimensions: 20 mm x 50 mm
Overall Length: 12.25" (31,1 cm)
Handle Length: 5" (12,7 cm)


Storage Case Available
Download Product Brochure (PDF)

TOP





Mueller-Type Cement Removal Instruments

Used for cement removal in the knee, hip, and shoulder




Mueller-Type Cement Removal Instruments

Mueller-Type Cement Removal Instruments

Product No's

S7500-00 [Complete Set with Case] Non-CE Countries

S7500-01 [Complete Set with Case] CE Countries

(Top to Bottom):

1) Narrow Cement Removal Gouge, Short
Product No: S7505
Shaft Length: 15 cm
Gouge: 9 mm, negative


2) Narrow Cement Removal Gouge, Long
Product No: S7507
Shaft Length: 24 cm
Gouge: 9 mm, negative

3) Narrow Offset Cement Removal Gouge
Product No: S7510
Shaft Length: 24 cm
Gouge: 9 mm, negative


4) Acetabular Chisel
Product No: S7515
Shaft Length: 24 cm
Chisel: 7.5 mm

5) Offset Chisel
Product No: S7520
Shaft Length: 15 cm
Chisel: 9 mm


6) Flared Angle Gouge
Product No: S7525
Shaft Length: 24 cm
Gouge: 9 mm, positive, angle 15° downward

7) Wide Gouge
Product No: S7530
Shaft Length: 24 cm
Gouge: 11.5 mm, negative


8) “V” Splitter
Product No: S7535
V-Shaped Chisel: 7 mm

9) Saddle Punch
Product No: S7587
Shaft Length: 24 cm
Punch: 16.5 mm x 6.5 mm

10) Cement Splitting Osteotome
Product No: S7590
Shaft Length: 24 cm

11) Cement Removal Osteotome, Short
Product No: S7595
Shaft Length: 15 mm
Osteotome: 8 mm

12) Cement Removal Osteotome, Long
Product No: S7597
Shaft Length: 24 cm
Osteotome: 8 mm


13) 4.4mm Drill
Product No: S7540

14) 4.4mm Drill Guide
Product No: S7545

15) 6.4mm Drill
Product No: S7550

16) 6.4mm Drill Guide
Product No: S7555

17) Straight Cement Removal Hook
Product No: S7560
Hook Curette: 10 mm

18) Curved Cement Removal Hook
Product No: S7565
Hook Curette: 10 mm

19) Cross Bar
Product No: S7570

20) 7mm T-Handle Conical Tap
Product No: S7575

21) 9mm T-Handle Conical Tap
Product No: S7580

22) Slotted Mallet
Product No: S7585

9075 [Case]

Optional Instruments:



8247-00 [T-Handle Chuck & Key]

8247-01 [T-Handle Chuck Only]

8247-02 [Chuck Key Only]
Download Product Brochure (PDF) – Non CE Countries
Download Product Brochure (PDF) CE Countires

TOP





Ring Curettes





Ring Curettes
Product No's:

5150 [Straight, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.75" (22,2 cm)

5152 [Straight, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.75" (22,2 cm)

5154 [Straight, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.75" (22,2 cm)

5156 [Bent, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.5" (21,9 cm)

5157 [Bent, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.5" (21,9 cm)

5158 [Bent, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.5" (21,9 cm)
Download Product Brochure (PDF)

TOP





Robb Cement Curette

Designed to help remove cement around a hip or knee prosthesis


Designed by William Robb, MD


Robb Cement Curette

Made of Delrin

Product No: 5635
Overall Length: 8" (20,3 cm)
Freer End: 5 mm
Cup End: 10 mm
Download Product Brochure (PDF)

TOP





Sarraf Cement Trimmer

Two-in-one instrument designed for cement removal during arthroplasty surgery










Designed by Khaled M. Sarraf, MD



Sarraf Cement Trimmer

The curved semicircular tip is congruent to most tibial plates and femoral condylar implants, helping to facilitate removal of excess cement, especially at the tight posterior aspect

The small scoop-end tip assists in excising unset cement



Ultra hard titanium nitride coating helps to extend curette life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion, while helping to eliminate metal transfer and protect the implant surface

Product No: 5212
Overall Length: 7.75" (19,7 cm)
Download Product Brochure (PDF)

TOP





Sarraf Spearhead Cement Exciser

Two-in-one instrument designed for cement removal during arthroplasty surgery










Designed by Khaled M. Sarraf, MD



Sarraf Spearhead Cement Exciser

The curved semicircular tip is congruent to most tibial plates and femoral condylar implants, helping to facilitate removal of excess cement, especially at the tight posterior aspect

The spearhead tip assists in excising and shaping the unset cement



Ultra hard titanium nitride coating helps to extend curette life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion, while helping to eliminate metal transfer and protect the implant surface

Product No: 5211
Overall Length: 7.75" (19,7 cm)
Download Product Brochure (PDF)

TOP





Wagner Osteotome Handle

Handle is designed for easier gripping, rotational control, and use with a mallet with a standard 1/4” Lambotte osteotome


Designed by Russell Wagner, MD


Wagner Osteotome Handle



Product No's

5348 [Handle Only]
Overall Length: 5.5" (14 cm)

5348-01 [1/4" Osteotome Only]
Overall Length: 8.875" (22,5 cm)
Download Product Brochure (PDF)

TOP





Whang Tibial Osteotome

Designed to disrupt the interface of a well fixed tibial base, specifically the lateral portion


Designed by William Whang, MD


Whang Tibial Osteotome
Whang Tibial Osteotome


Product No: 5338
Overall Length: 8" (20,3 cm)
Handle Length: 4.5" (11,4 cm)
Blade Thickness: 2,5 mm



VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Whelan Flexible Chisel Guide

Designed to help stabilize a thin chisel blade until it's within the bone prosthesis interface


Designed by Edward J. Whelan, III, MD


Whelan Flexible Chisel Guide
Whelan Curved Chisel GuideWhelan Flexible Chisel Guide


Guide with sliding handle helps to stabilize a curved, thin flexible chisel blade until it's within the bone prosthesis interface. Chisel tip lets it hug prosthesis to help prevent perforation. Slap hammer threads into the handle and is designed to facilitate blade removal. Easily changeable disposable blades help assure sharpness.



Chisel blade features an ultra hard titanium nitride coating to help extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.

Product No's:

5302-00 [Complete Set[

Included In Set / Replacement Parts:

5302-01 [Guide Only]
Overall Length: 5" to 8.75" (12,7 to 22,2 cm)

5302-02 [10mm Chisel Blade Only]
Overall Length: 4.625" (11,7 cm)
Blade Thickness: .020" (.51 mm)

3040 [Slap Hammer]

1015 [Sterilization Case]
Download Product Brochure (PDF)

TOP





Whelan Curved Chisel Guide

Designed to help stabilize a thin curved chisel blade
until it's within the bone prosthesis interface


Designed by Edward J. Whelan, III, MD


Whelan Curved Chisel Guide
Whelan Curved Chisel Guide
Whelan Curved Chisel Guide


Guide with sliding handle helps to stabilize a curved, thin flexible chisel blade until it's within the bone prosthesis interface. Chisel tip lets it hug prosthesis to help prevent perforation. Slap hammer threads into the handle and is designed to facilitate blade removal. Easily changeable disposable blades help assure sharpness.



Chisel blade features an ultra hard titanium nitride coating to help extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.

Product No's:

5302-00 [Complete Set[

Included In Set / Replacement Parts:

5302-01 [Guide Only]
Overall Length: 5" to 8.75" (12,7 cm to 22,2 cm)

5302-02 [10mm Chisel Blade Only]
Overall Length: 4.625" (11,7 cm)
Blade Thickness: .020" (.51 mm)

3040 [Slap Hammer]

1015 [Sterilization Case]
Download Product Brochure (PDF)

TOP



© 2023 Innomed, Inc. All rights reserved.
